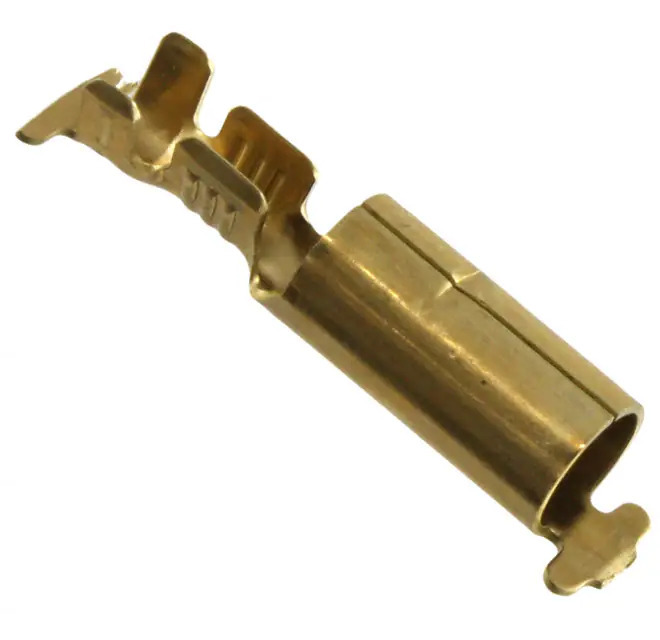

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.180" (4.57mm)
Wire Gauge 14-18 AWG
Length - Overall 0.785" (19.94mm)
Length - Barrel 0.420" (10.67mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish -
Color -
Insulation Diameter 0.090" ~ 0.125" (2.29mm ~ 3.18mm)
Material - Insulation -
Base Product Number 60798
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363195-60798-2
Ultra Librarian 3D Model Ultra Librarian 60798-2 CAD Model

Description

The TE Connectivity AMP Connectors Shur-Plug series offers a reliable solution for barrel and bullet connectors.

  • Series: Shur-Plug
  • Terminal Type: Female Receptacle (Socket)
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.090" ~ 0.125" (2.29mm ~ 3.18mm)
  • Contact Material: Brass
  • MSL: 1 (Unlimited)
  • Packaging: Tape & Reel (TR)
  • Base Product Number: 60798
  • HTSUS Code: 8536.90.4000
  • REACH: Vendor undefined
  • ECCN: EAR99
