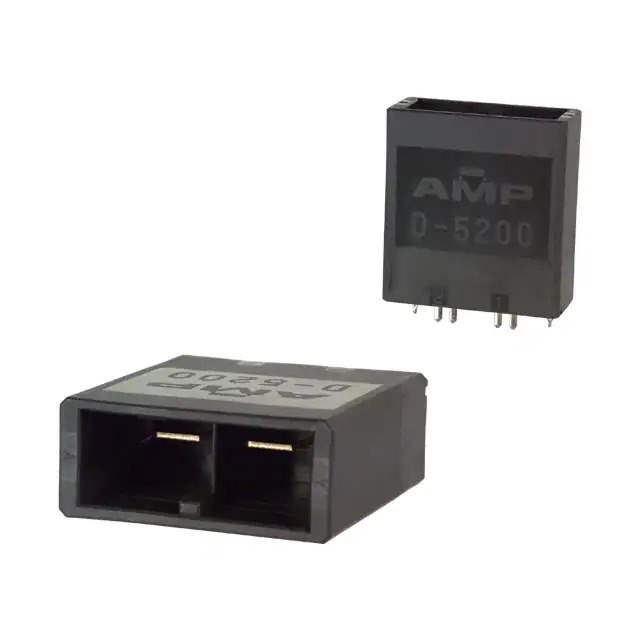

6-353080-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-5200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.400" (10.16mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Insulation Height 1.260" (32.00mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 30A
Voltage Rating 630V
Applications General Purpose, Industrial
Base Product Number 353080
Standard Package 320 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856878-6-353080-2
Ultra Librarian 3D Model Ultra Librarian 6-353080-2 CAD Model

Description

The 856878-6-353080-2 is a male pin header connector from TE Connectivity. TE Connectivity manufactures this.

  • Series: Dynamic D-5200
  • Number of Positions: 2
  • Board Lock: Yes
  • Connector Type: Header
  • Contact Type: Tab
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 630V
  • Ingress Protection: IP20
  • Flammability Rating: UL94 V-0
  • Application: General Purpose, Industrial
  • Package: Bulk
  • Standard Package Quantity: 320 pieces
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.400" (10.16mm)
  • Contact Finish Mating: Gold, 15.0µin (0.38µm)
  • Contact Finish Post: Tin
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouding: Shrouded - 4 Wall
  • Insulation Height: 1.260" (32.00mm)
  • Contact Shape: Rectangular
  • Temperature Range: -55°C to 105°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 353080
  • Product Status: Active
