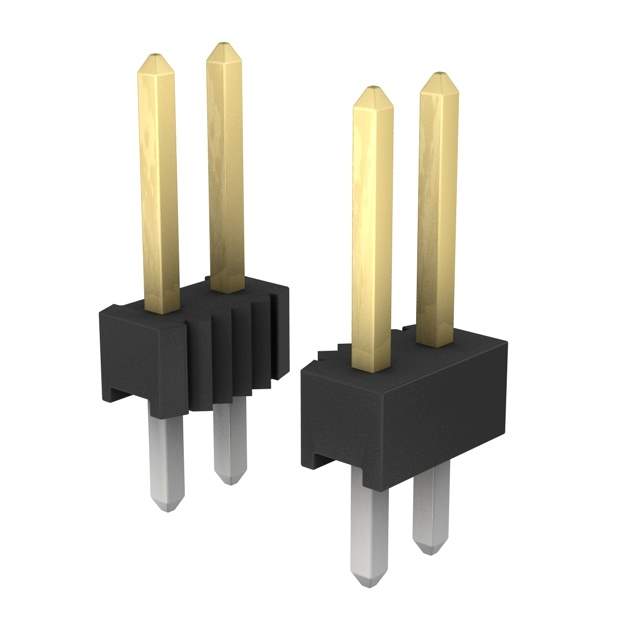

6-146269-0

Name: 6-146269-0
Brand: TE Connectivity
SKU: 804884
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	6-146269-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.440" (11.18mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0μin (2.54μm)
Manufacturer Pack Quantity	4,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804884-6-146269-0
Ultra Librarian 3D Model	Ultra Librarian 6-146269-0 CAD Model

Description

The TE Connectivity AMP Connectors 804884-6-146269-0 is a header, breakaway type of connector that has 20 positions.

Mounting: Through Hole
Contact Type: Male Pin
Contact Finish: Gold
Contact Finish Thickness (Mating): 30.0µin (0.76µm)
Contact Finish Thickness (Post): 100.0µin (2.54µm)
Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Temperature Range: -65°C ~ 105°C
Style: Board to Board or Cable
Packaging: Bulk
Standard Package: 4,000 pieces
