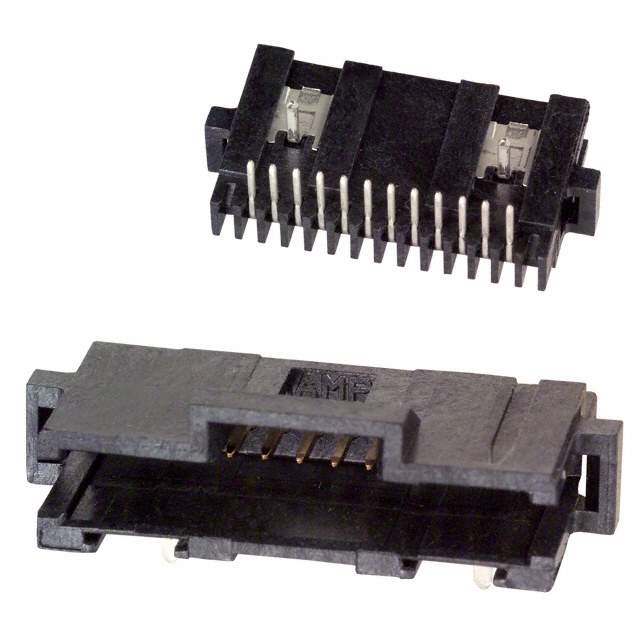

6-104074-1 Real Image
Same model may have multiple batches, images only for reference.

6-104074-1

Part No 6-104074-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 1.27MM / HEADER ASSEMBLY, RIGHT ANGLE SINGLE ROW, W/SIDE & END LATCHES AMPMODU SYSTEM 50
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.100" (2.54mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Board Guide
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150.0μin (3.81μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Manufacturer Pack Quantity 23
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812945-6-104074-1
Ultra Librarian 3D Model Ultra Librarian 6-104074-1 CAD Model

Description

The TE Connectivity AMP Connectors 812945-6-104074-1 is a through-hole, right angle header connector from TE Connectivity AMP Connectors.

  • Positions: 12
  • Board Guide: Yes
  • Applications: Automotive, General Purpose, Medical, Telecommunications
  • Material: Copper Alloy
  • Voltage Rating: 30VAC
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Contact Finish (Mating): Gold, 30.0μin (0.76μm)
  • Contact Finish (Post): Tin, 150.0μin (3.81μm)
  • Shrouding: 2 walls
  • Contact Shape: Circular
  • Operating Temperature Range: -65°C ~ 105°C
  • Contact Length (Mating): 0.125" (3.18mm)
  • Contact Length (Post): 0.100" (2.54mm)
  • Insulation Height: 0.190" (4.83mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 23
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): -
