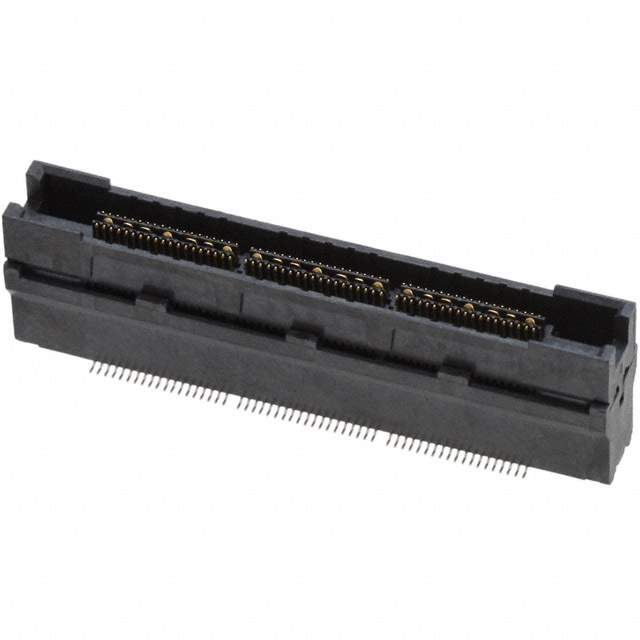

5767094-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle, Center Strip Contacts
Number of Positions 114
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Style SMD
Features Board Guide, Ground Bus (Plane)
Contact Finish Palladium-Nickel
Contact Finish Thickness 30.0μin (0.76μm)
Mated Stacking Heights 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm
Height Above Board 0.587" (14.91mm)
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813017-5767094-3
Ultra Librarian 3D Model Ultra Librarian 5767094-3 CAD Model

Description

This TE Connectivity AMP Connectors receptacle with center strip contacts is a high-quality electronic component used in various applications.

  • Package: Tube
  • Positions: 114
  • Pitch: 0.025 inches (0.64mm)
  • Mounting Style: SMD
  • Features: Board Guide, Ground Bus (Plane)
  • Rows: 2
  • Contact Finish: Palladium-Nickel
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mated Stacking Heights: 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm
  • Height Above Board: 0.587 inches (14.91mm)
  • Popularity: Low
  • Manufacturer Pack Quantity: 10
  • MSL Level: 1 (Unlimited)
