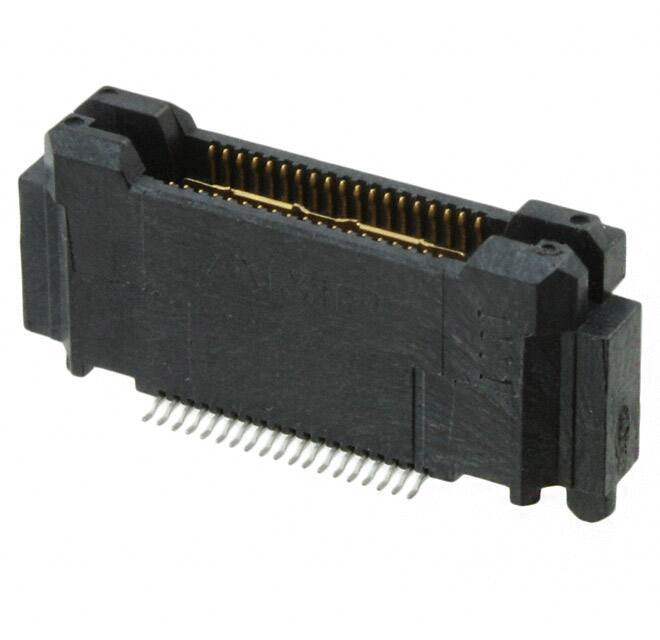

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series MICTOR
Package Tube
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 11mm, 20mm
Height Above Board 0.419" (10.64mm)
Base Product Number 5767003
Standard Package 21 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907501-5767003-9
Ultra Librarian 3D Model Ultra Librarian 5767003-9 CAD Model

Description

The MICTOR series board-to-board connectors offer a reliable and versatile solution for your interconnection needs.

  • Series: MICTOR
  • Positions: 38
  • Pitch: 0.025" (0.64mm)
  • Connector Type: Plug
  • Contacts: Outer Shroud
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Height Above Board: 0.419" (10.64mm)
  • Manufacturer: TE Connectivity
