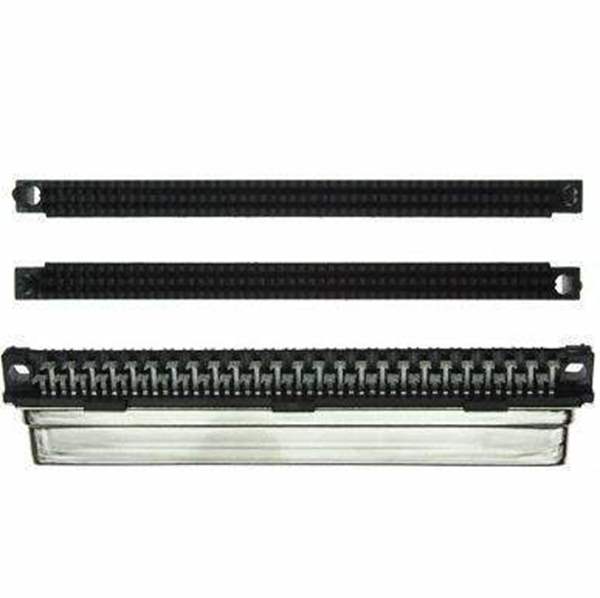

5749699-8TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5749699-8

Part No 5749699-8
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 100POS IDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Package Bulk
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Features Shielded
Win Source Part Number WS1209575-5749699-8
Ultra Librarian 3D Model Ultra Librarian 5749699-8 CAD Model

Description

100 Position D-Type Receptacle, Female Sockets Connector
