Same model may have multiple batches, images only for reference.

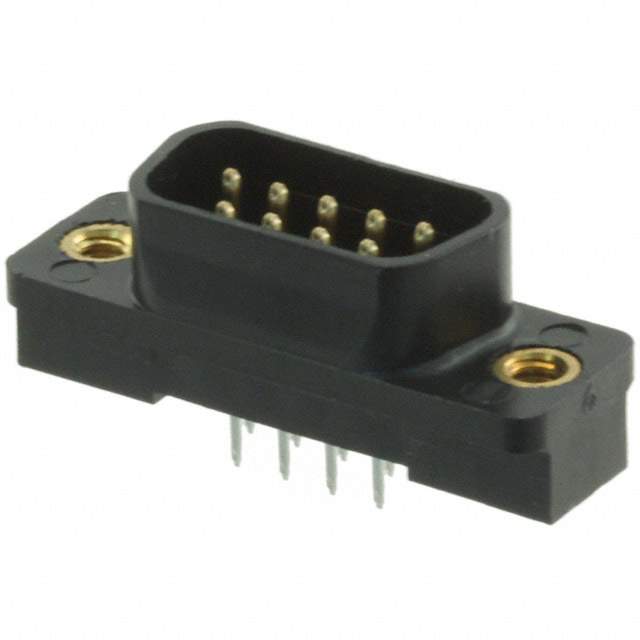

5745051-2 Real Image
Same model may have multiple batches, images only for reference.

5745051-2

Part No 5745051-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5745051
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5745051-2,57450512
Standard Package 17
Win Source Part Number 1333160-5745051-2
Ultra Librarian 3D Model Ultra Librarian 5745051-2 CAD Model

Description

TE Connectivity AMP Connectors 1333160-5745051-2 is a D-Sub connector assembly with a tube packaging.

  • Positions: 9
  • Color: Black
  • Connector Type: Plug
  • Contact Gender: Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting: Through-Hole
  • Flange Feature: Housing/Shell (4-40)
  • Dielectric Material: Polyester
  • Shell Size, Connector Layout: 1 (DE, E)
  • Temperature Range: -55°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 6A
  • REACH Status: REACH Affected
  • HTSUS: 8536.69.4040
  • Other Part Number: 2266-5745051-2,57450512
  • Base Product Number: 5745051
  • ROHS3 Compliant: True
