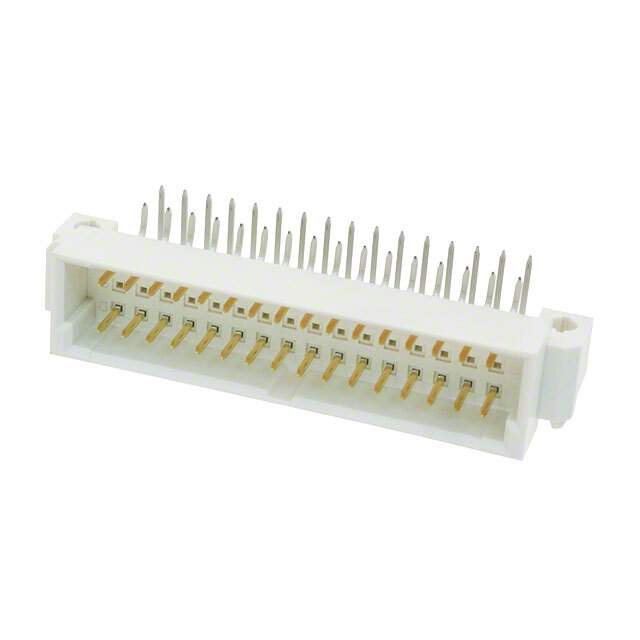

5650946-5 Real Image
Same model may have multiple batches, images only for reference.

5650946-5

Part No 5650946-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN HDR 48POS PCB RA  /  48 Position Din Connector Header, Male Pins Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Header, Male Pins
Number of Positions 48
Number of Positions Loaded 32
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Mounting Type Through Hole, Right Angle
Termination Solder
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5650946
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 56509465,A101776,2266-5650946-5
Standard Package 30
Win Source Part Number 985286-5650946-5
Ultra Librarian 3D Model Ultra Librarian 5650946-5 CAD Model

Description

The Eurocard series connector from TE Connectivity AMP Connectors is a male header with 48 positions and a pitch of 0.100" (2.54mm).

  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Positions Loaded: 32
  • Rows: 3
  • Termination Type: Solder
  • Insulation Material: Polymer Thermoplastic, Glass Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Style: Right-Angle
  • Operating Temperature Range: -55°C to 125°C
