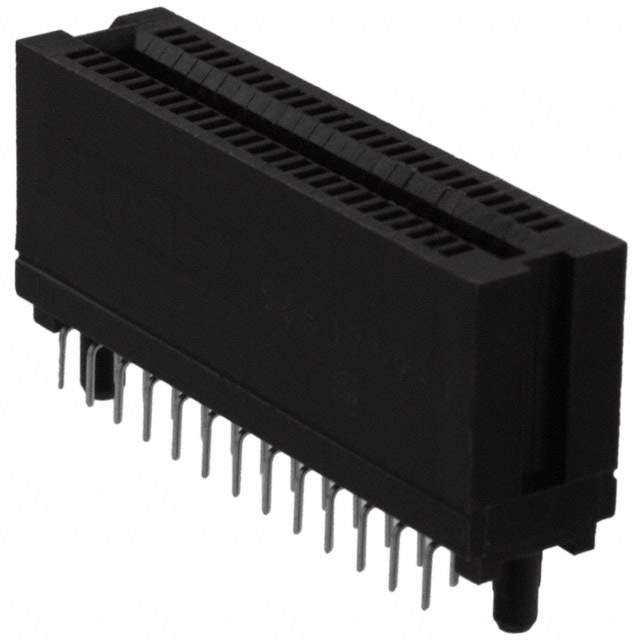

5650719-1 Real Image
Same model may have multiple batches, images only for reference.

5650719-1

Part No 5650719-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 50POS 0.100 / 50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Brown
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 25
Number of Positions 50
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Board Guide
Mounting Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Brown
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5650719
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 56507191,-5650719-1-SI,2266-5650719-1
Standard Package 35
Win Source Part Number 1334026-5650719-1
Ultra Librarian 3D Model Ultra Librarian 5650719-1 CAD Model

Description

The 5650719-1 is a dual edge card edge connector from TE Connectivity AMP Connectors that has 50 positions and a pitch of 0.100" (2.54mm).

  • Positions: 50
  • Pitch: 0.100" (2.54mm)
  • Board Guide: Yes
  • Mounting: Through-Hole
  • Termination: Staggered Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Insulation Material: Polyester, Glass Filled
  • Color: Brown
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Card Type: Non-Specified
  • Temperature Range: -55°C to 85°C
  • ROHS3 Compliant: Yes
