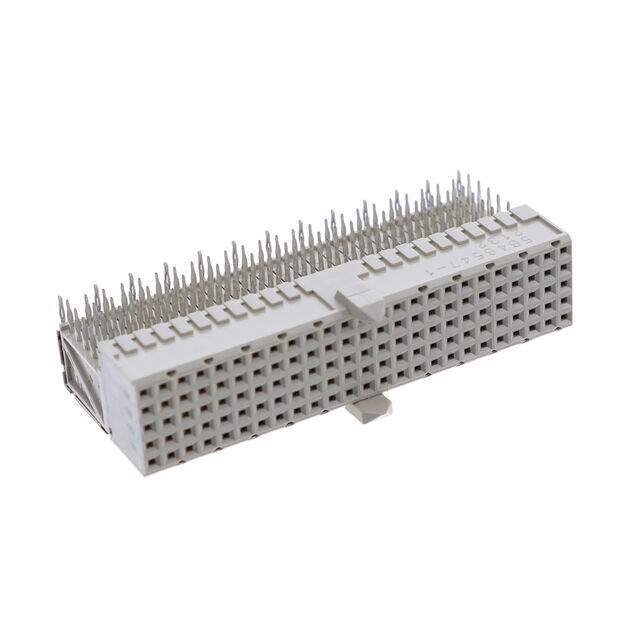

5646547-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5646547-1

Part No 5646547-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 138POS 2MM PRESS-FIT
Datasheet
5646547-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Part Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 138 (125 + 13 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 1
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Ultra Librarian 3D Model Ultra Librarian 5646547-1 CAD Model

Description

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 25 Column, 5 Row, Mezzanine, 125 Position, 2 mm [.078 in] Centerline, Right Angle, Z-PACK 2mm HM
