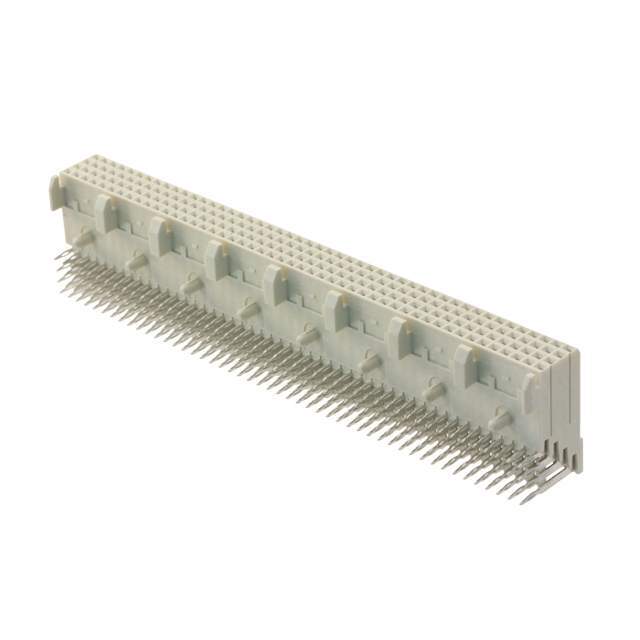

5536511-4 TE Connectivity
Same model may have multiple batches, images only for reference.

5536511-4

Part No 5536511-4
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT RT/A 2MM 192POS 30AU
Datasheet
5536511-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Z-PACK
Packaging Tube
Connector Type Receptacle, Female Sockets
Connector Style Futurebus
Number of Positions 192
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Features Spacer
Contact Finish Gold
Color Natural
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 125°C
Voltage Rating 30V
Win Source Part Number 764023-5536511-4
Popularity Medium
Supply and Demand Status Balance
Family Name 5536511
Introduction Date July 15, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5536511-4 CAD Model

Description

{"ProductId":702401,"FormattedDescription":"

The TE Connectivity AMP Connectors Z-PACK is a receptacle that contains female sockets for the purpose of connecting different electronic components.

  • Positions: 192
  • Pitch: 0.079 inches (2.00mm)
  • Temperature Range: -55°C to 125°C
  • Features: Spacer, All Positions Loaded
  • Rows: 4
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: - (not specified)
  • Connector Style: Futurebus
  • Voltage Rating: 30V
  • Material Flammability Rating: UL94 V-0
  • Mounting: Board Edges, Through Holes, Right Angles
  • Usage: Not Specified
  • Color: Natural
  • Family: 5536511
  • Category: Connectors and Interconnects
  • Compliance: Halogen-free
  • Estimated EOL Date: 2026
"}
