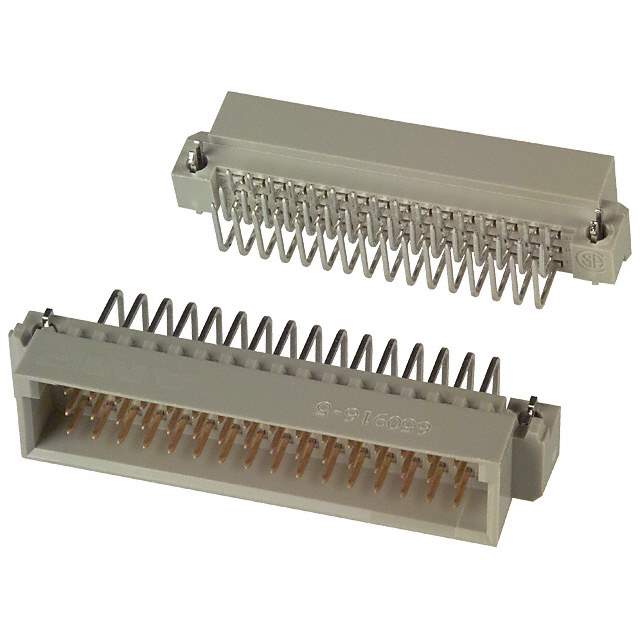

5536407-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5536407
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -5536407-5-SI
Standard Package 150
Win Source Part Number 998648-5536407-5
Ultra Librarian 3D Model Ultra Librarian 5536407-5 CAD Model

Description

The 998648-5536407-5 is a 48-position male plug connector with a 0.100" pitch manufactured by TE Connectivity AMP Connectors.

  • Positions: 48
  • Pitch: 0.100"
  • Application: Backplane
  • Series: Eurocard
  • Board Lock: Yes
  • Loaded Positions: All
  • Rows: Three
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Polymer Thermoplastic, Glass Filled
  • Flammability Rating: UL94 V-0
  • Package: Bulk
  • Style: C/2 (1/2 C)
  • Class: Level, Class 2
  • Mounting: Through-Hole or Right Angle
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
