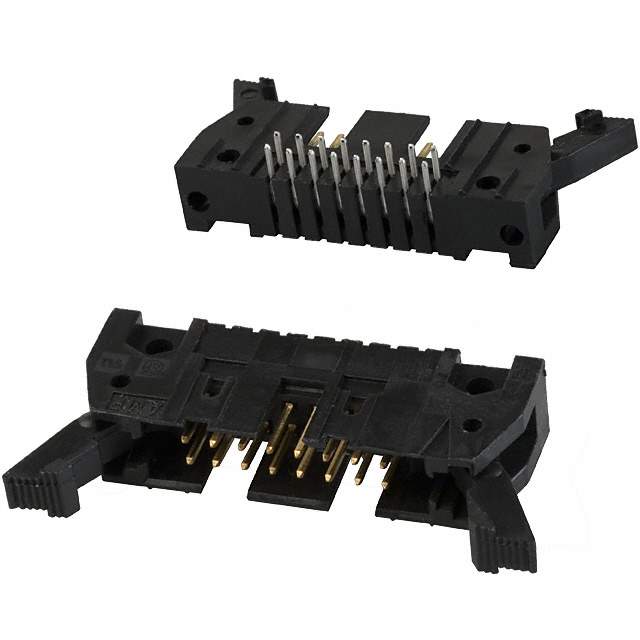

5499913-3 Real Image
Same model may have multiple batches, images only for reference.

5499913-3

Part No 5499913-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2.54MM / Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499913
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 54999133,-5499913-3-SI,AHB16H
Standard Package 56
Win Source Part Number 1199054-5499913-3
Ultra Librarian 3D Model Ultra Librarian 5499913-3 CAD Model

Description

The TE Connectivity AMP Connectors AMP-Latch series header is a male pin connector that is used in various electronic applications.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 16
  • Features: Keying Slot and Mounting Flange
  • Fastening Type: Latch Lock/Eject Hooks, Short
  • Packaging: Bulk
  • Voltage Rating: 250VAC
  • Style: Board-to-Cable/Wire
  • MSL Level: 1 (Unlimited)
  • Current Rating: 1A per Contact
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
