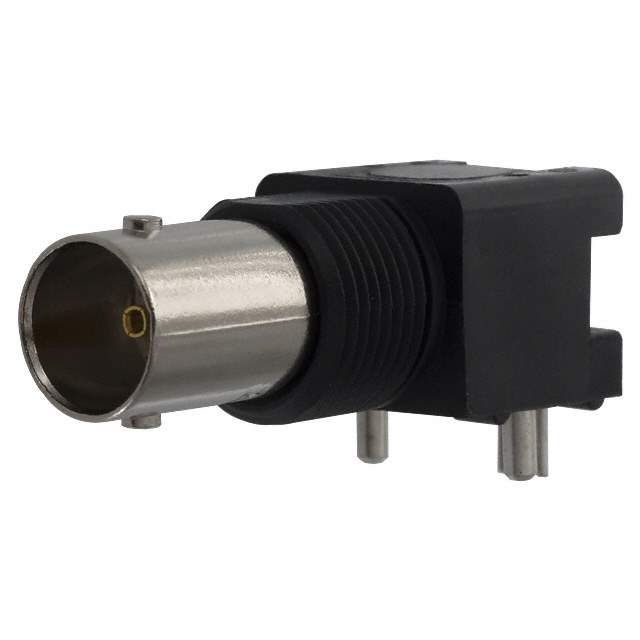

5413194-2 Real Image
Same model may have multiple batches, images only for reference.

5413194-2

Part No 5413194-2
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 75 OHM PCB / BNC Connector Jack, Female Socket 75Ohm Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Board Guide, Isolated
Housing Color Black, Silver
Center Contact Material Beryllium Copper
Body Material Zinc
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 5413194
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 54131942,A32403,Q6804163D
Standard Package 35
Win Source Part Number 1331985-5413194-2
Ultra Librarian 3D Model Ultra Librarian 5413194-2 CAD Model

Description

This TE Connectivity AMP Connectors BNC female socket connector is designed for coaxial RF assemblies.

  • Fastening Type: Bayonet lock
  • Isolated: Yes
  • Voltage Rating: 500 V
  • Mounting: Panel-mounted, through-hole, and right-angled
  • Body Material: Zinc
  • Body Finish: Nickel
  • Housing Color: Black and silver
  • Impedance: 75Ohm
  • Frequency Range: Up to 2 GHz
  • Insertion Loss: Yes
  • Suitable for: General applications
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • Standard Package: 35
