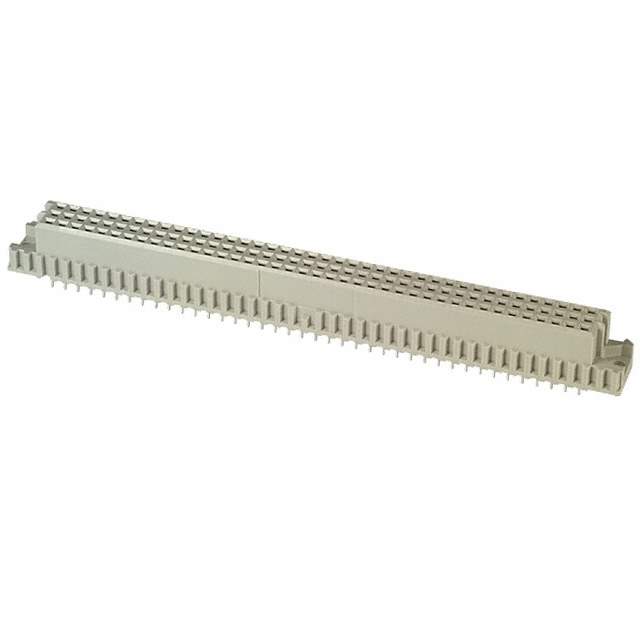

535098-5 Real Image
Same model may have multiple batches, images only for reference.

535098-5

Part No 535098-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN RECEPT 120POS VERT PCB
Datasheet
535098-5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Eurocard
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 120
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Style Through Hole
Termination Solder
Contact Finish Gold
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
Win Source Part Number 766629-535098-5
Popularity Medium
Supply and Demand Status Limited
Family Name 535098
Introduction Date January 09, 2006
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 535098-5 CAD Model

Description

The TE Connectivity AMP Connectors Eurocard series female socket receptacle connector is a 3-row, 120-position, through-hole mounting style connector.

  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Operating Temperature: -55°C to 125°C
  • Insulation Material: Polyester, glass-filled
  • Flammability Rating: UL94 V-0
  • Estimated EOL Date: 2026
