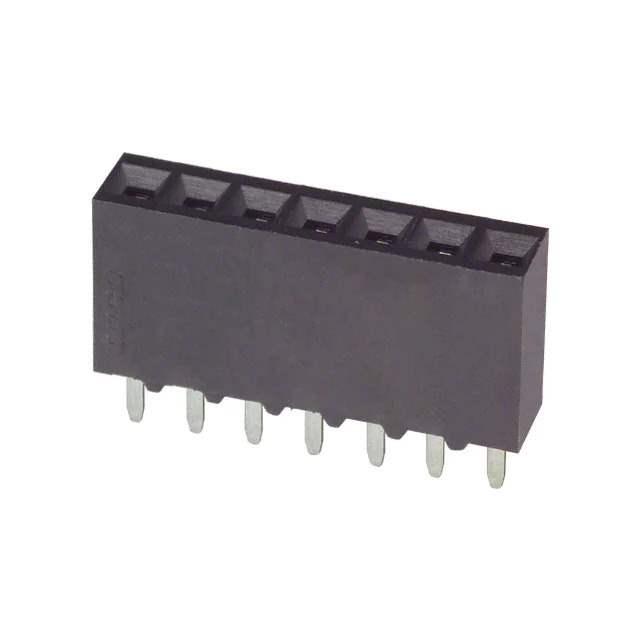

Part No 534237-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 7POS 0.1 GOLD PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series AMPMODU Mod IV
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 7
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.340" (8.64mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Contact Finish - Post Tin-Lead
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534237
Standard Package 32 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856492-534237-5
Ultra Librarian 3D Model Ultra Librarian 534237-5 CAD Model

Description

The AMPMODU Mod IV series from TE Connectivity offers versatile rectangular connectors for various applications. These headers, receptacles, and female sockets are designed for solder termination and feature a gold contact finish with a thickness of 30.0µin (0.76µm) for optimal conductivity.

  • Series: AMPMODU Mod IV
  • Termination: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Pitch: 0.100" (2.54mm)
  • Positions: 7
  • Application: board-to-board or cable
  • Current Rating: 2A
  • Temperature Range: -65°C to 125°C
