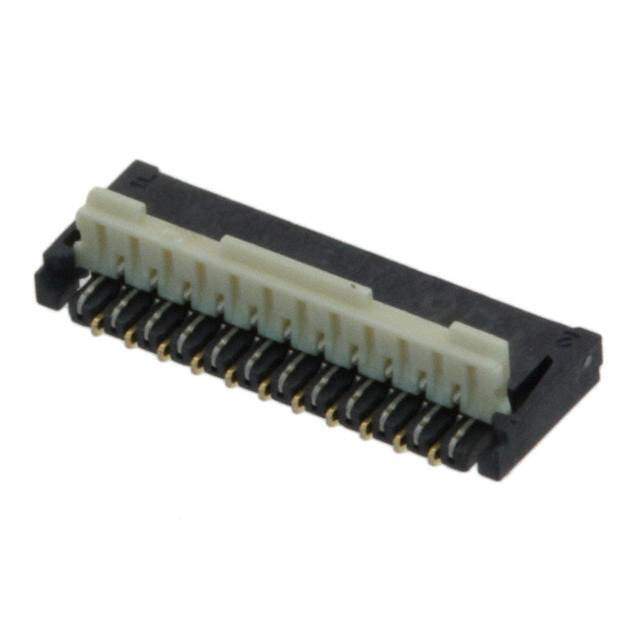

AYF332535 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y3B
Package Tape & Reel (TR)
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 5,000
Win Source Part Number 965749-AYF332535
Ultra Librarian 3D Model Ultra Librarian AYF332535 CAD Model

Description

The AYF332535 is a 25-position flat flexible connector designed for surface mount applications.

  • Positions: 25
  • Type: Flat Flexible Connector
  • Mounting: Surface Mount
  • Pitch: 0.012" (0.30mm)
  • Material: Liquid Crystal Polymer (LCP)
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Series: Y3B
  • Voltage Rating: 50V
  • Cable End Type: Tapered
  • Locking Feature: Flip Lock and Backlock
  • Applications: FPC and FFC
  • Temperature Range: -55°C to 85°C
