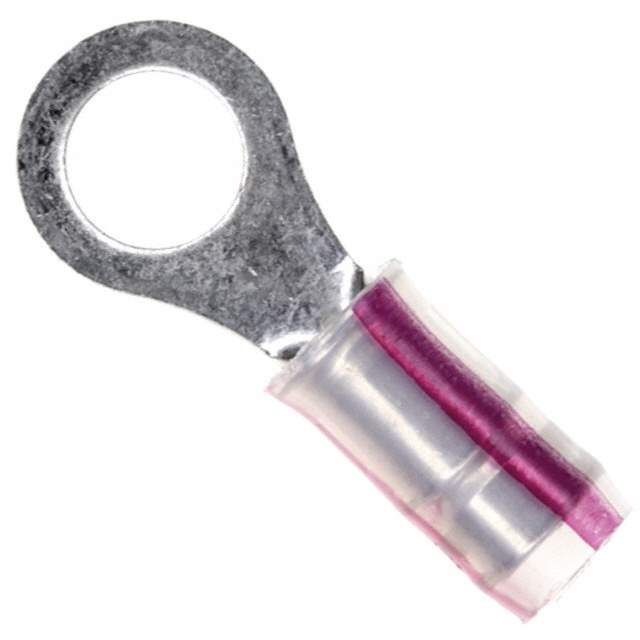

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Radiation Resistant, Serrated Termination
Color Natural, Red Stripe
Contact Finish Tin-Lead
Insulation Diameter 0.080" to 0.125" (2.03mm to 3.18mm)
Material - Insulation Polyvinylidene Fluoride (PVDF)
Win Source Part Number 107166-53409-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 53409-1 CAD Model

Description

Product: 53409-1

The 53409-1 is a robust component tailored for applications that demand exceptional precision and reliability. With its advanced features, it significantly enhances the performance of various electronic projects.

  • Applications:
  • Precision Instrumentation
  • Medical Equipment
  • Aerospace Systems
  • High-Tech Gadgets
  • Features and Benefits:
  • High precision output
  • Adaptable to harsh environmental conditions
  • Consistent performance over long durations
  • Minimal error rates

Additional Details: This component is known for its exceptional accuracy, making it an excellent choice for systems where precision is integral.
