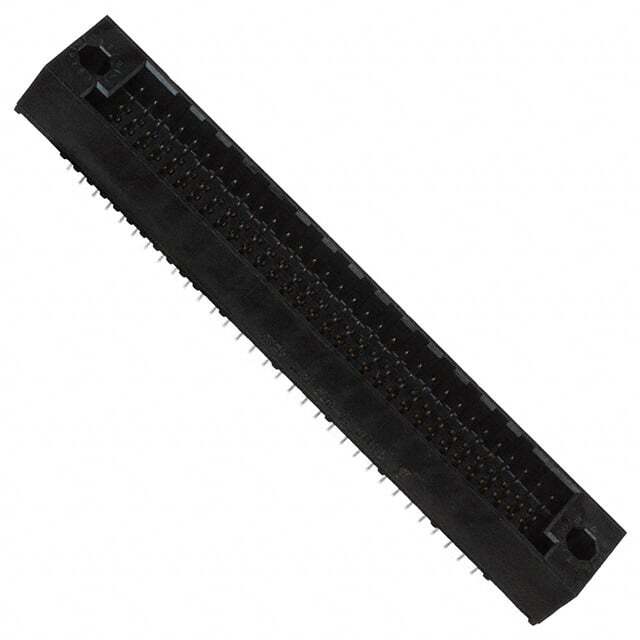

Part No 532436-3
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER HD 128POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series HDI (High Density Interconnect)
Package Tube
Product Status Active
Connector Type Header, Male Pins
Connector Style High Density (HDC, HDI, HPC)
Number of Positions 128
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 4
Mounting Type Through Hole
Termination Solder
Features Mating Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 125°C
Base Product Number 532436
Standard Package 5 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856483-532436-3
Ultra Librarian 3D Model Ultra Librarian 532436-3 CAD Model

Description

The HDI (High Density Interconnect) Backplane Connectors are specialized connectors designed for high-performance applications.

  • Type: Specialized Connectors
  • Series: HDI Series
  • Pitch: 0.100" (2.54mm)
  • Positions: 128
  • Pin Gender: Male
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: Through-Hole
  • Temperature Range: -65°C to 125°C
  • Manufacturer: TE Connectivity
