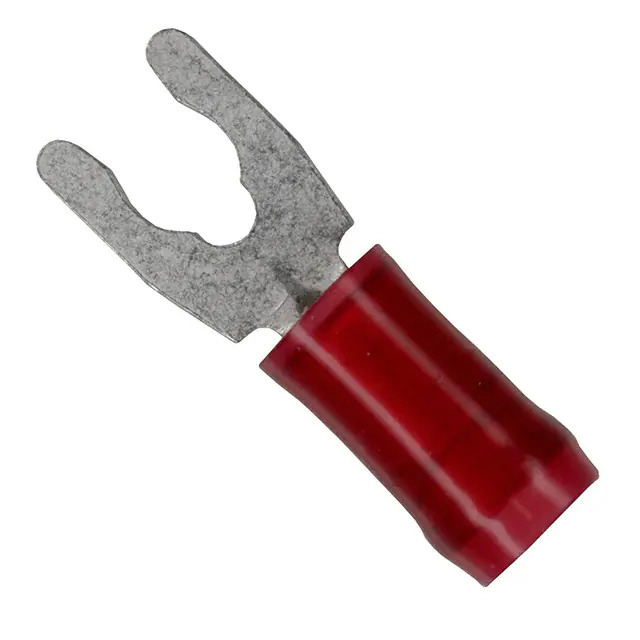

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Spade Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Tape & Reel (TR)
Product Status Active
Terminal Type Spring, Snap
Stud/Tab Size 6 Stud
Width - Outer Edges 0.250" (6.35mm)
Length - Overall 0.799" (20.29mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features -
Color Red
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.250" (6.35mm)
Length - Termination 0.404" (10.26mm)
Tongue Inside Opening 0.140" (3.56mm)
Base Product Number 52929
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365041-52929-3
Ultra Librarian 3D Model Ultra Librarian 52929-3 CAD Model

Description

The PIDG series from TE Connectivity AMP Connectors is a spade connector terminal.

  • Series: PIDG series
  • Manufacturer: TE Connectivity AMP Connectors
  • Terminal Type: Spade Connector
  • Mounting Type: Free-hanging (in-line)
  • Wire Gauge: 16-22 AWG
  • Contact Finish: Tin
  • Insulation: Insulated
  • Product Status: Active
  • Base Product Number: 52929
  • Packaging: Tape & reel (TR)
  • HTSUS Code: 8536.90.4000
  • REACH Status: Vendor undefined
  • ECCN: EAR99
