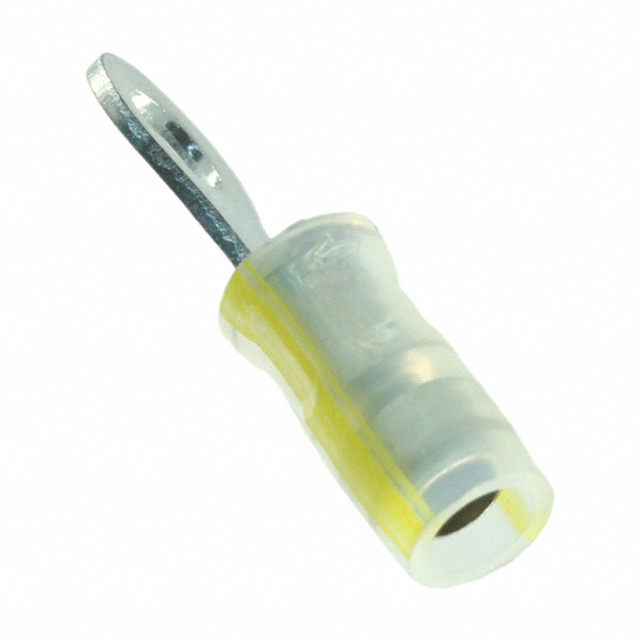

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 0.946" (24.03mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 20 AWG
Insulation Insulated
Features Insulation Restriction, Offset Holes, Serrations
Color Red, Red Stripe
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1636069-52284-3
Ultra Librarian 3D Model Ultra Librarian 52284-3 CAD Model

You May Also Be Interested in

RV14-10Q 3M – Price, Stock & Datasheet
RV14-10Q
3M
CONN RING CIR 14-16AWG #10 1=1PC
