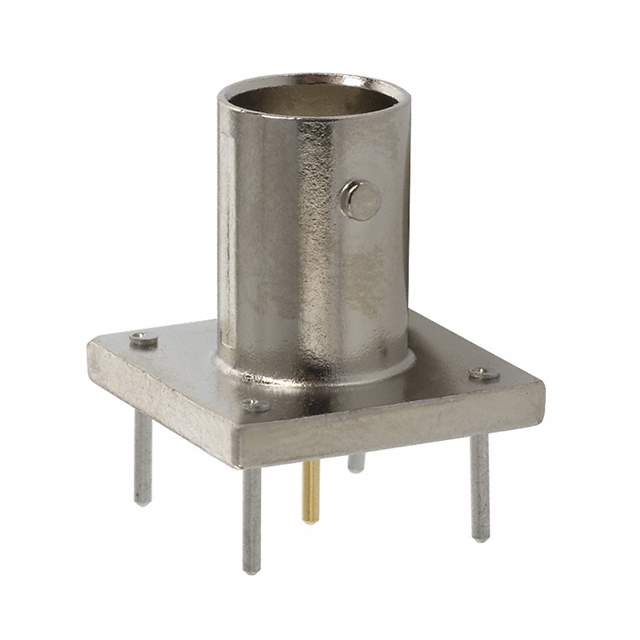

Same model may have multiple batches, images only for reference.

5227699-2

Name: 5227699-2
Brand: TE Connectivity
SKU: 763939
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5227699-2
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN BNC JACK STR 50 OHM PCB
Datasheet	5227699-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50 Ohm
Mounting Style	Through Hole
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Housing Color	Silver
Body Material	Zinc
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Operating Temperature Range	-55°C ~ 85°C
Center Contact Material	Phosphor Bronze
Voltage Rating	500V
Mating Cycles	500
Win Source Part Number	763939-5227699-2
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 5227699-2 CAD Model

Alternative Products

Description

The 763939-5227699-2 is a BNC female socket jack connector manufactured by TE Connectivity AMP Connectors.

Fastening Type: Bayonet Lock
Mounting: Through Hole
Voltage Rating: 500V
Frequency: Up to 4GHz
Applications: Connectors and Interconnects
Operating Temperature Range: -55°C to 85°C
Popularity: Moderate
Supply and Demand Status: Balanced
