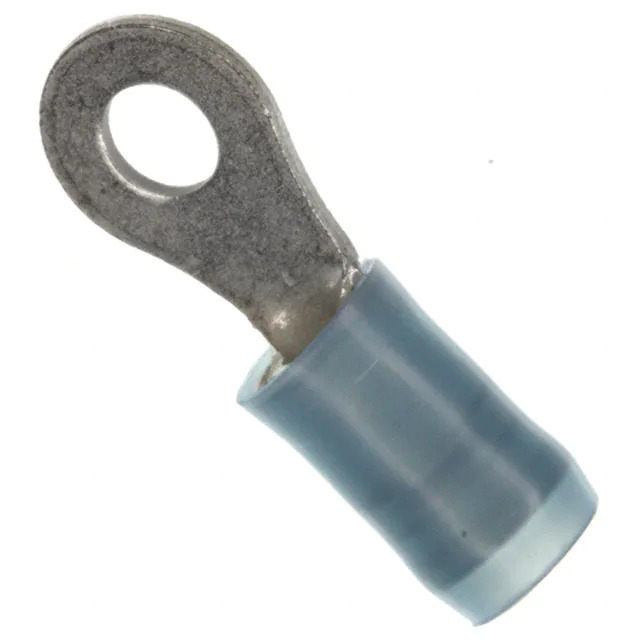

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features -
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.150" (2.67mm ~ 3.81mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 51864
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364906-51864-2
Ultra Librarian 3D Model Ultra Librarian 51864-2 CAD Model

Description

The TE Connectivity AMP Connectors PIDG Ring Connector is a reliable and high-quality electrical connector designed for use in various applications.

  • Mounting Type: Free-Hanging (In-Line)
  • Wire Gauge: 14-16 AWG
  • Insulation Material: Polyamide (PA) Nylon
  • Insulation Color: Blue
  • Overall Length: 0.844 inches (21.44mm)
  • Width: 0.312 inches (7.92mm)
  • Termination: Crimp
  • Contact Material: Copper
  • Series: PIDG
