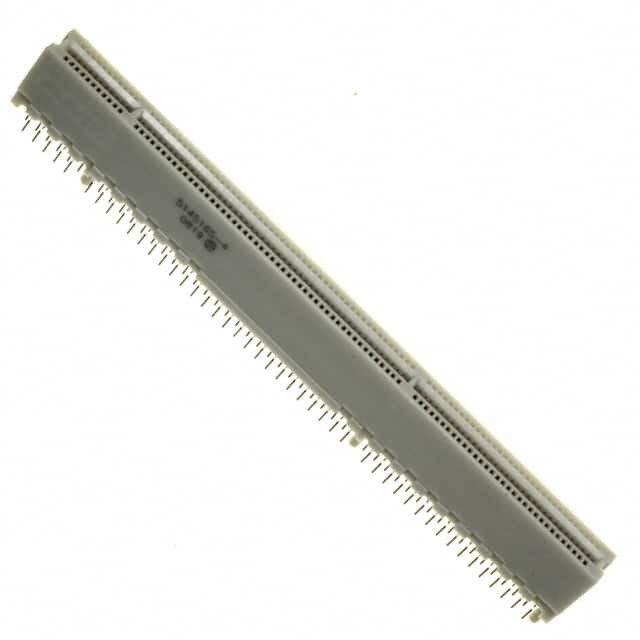

5145165-4
Same model may have multiple batches, images only for reference.

5145165-4

Part No 5145165-4
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI CARDEDGE FML 184P 0.050 / 184 Position Female Connector PCI 3.3V 64 Bit Gold 0.050" (1.27mm) Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity
Series Standard Edge .050
Package Bulk
Product Status Active
Card Type PCI 3.3V 64 Bit
Gender Female
Number of Positions/Bay/Row 11; 49; 32
Number of Positions 184
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.050" (1.27mm)
Read Out Dual
Features Board Guide
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Material - Insulation Thermoplastic
Base Product Number 5145165
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856372-5145165-4
Ultra Librarian 3D Model Ultra Librarian 5145165-4 CAD Model

Description

The Standard Edge .050 series from TE Connectivity is a card edge connector designed for high-performance applications.

  • Pitch: 0.050 inches (1.27mm)
  • Positions: 184
  • Color: Natural
  • Features: Board Guide
  • Rows: 2
  • Termination: Staggered Solder
  • Contact Finish: Gold (30.0µin (0.76µm) Thickness)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic
  • Gender: Female
  • Card Type: PCI 3.3V 64 Bit
  • Mounting: Through Hole
  • Standard Package: 35 pieces
