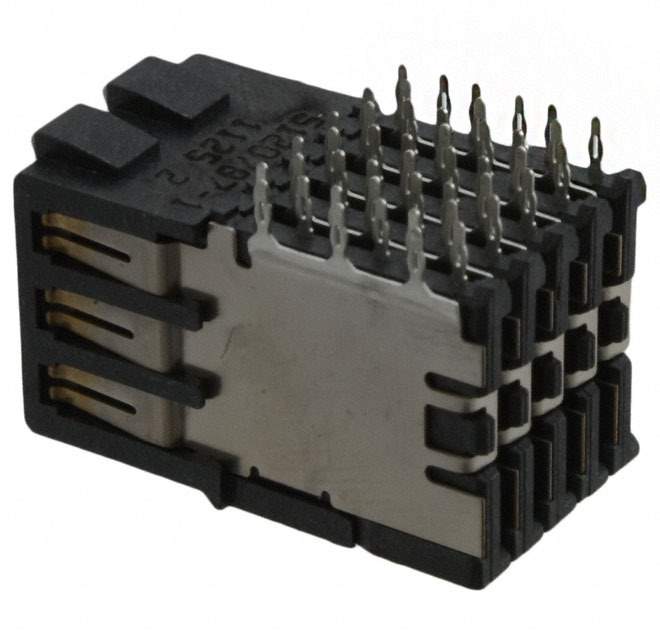

5120787-1 Real Image
Same model may have multiple batches, images only for reference.

5120787-1

Part No 5120787-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT 2MM HM 30POS R/A GOLD
Datasheet
5120787-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Usage Backplane
Connector Type Receptacle, Female Sockets
Connector Style Dual Beam, Center
Number of Positions 30
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 6
Number of Columns 5
Mounting Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Current Rating 1.15A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C to 105°C
Voltage Rating 250V
Win Source Part Number 056937-5120787-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5120787-1 CAD Model

Description

Product Overview

The 5120787-1 electronic component is engineered to deliver exceptional operational reliability, catering to a diverse range of industry needs.

Applications

  • Industrial machinery
  • Renewable energy systems
  • Transportation technology

Features and Benefits

  • Robust Performance: Suitable for harsh environments.
  • Flexible Application: Easily adapts to various system requirements.
  • Environmentally Friendly: Manufactured with sustainable processes.

Additional Details

The 5120787-1 is noted for its excellent adaptability, especially in rapidly changing technological landscapes.
