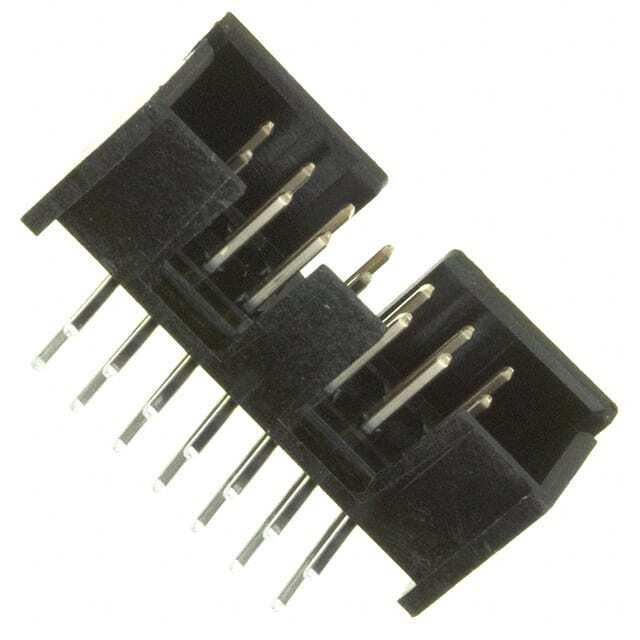

5103310-2
Same model may have multiple batches, images only for reference.

5103310-2

Part No 5103310-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 14POS 2.54MM / Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMP-Latch
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.135" (3.43mm)
Insulation Height 0.360" (9.14mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5103310
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848901-5103310-2
Ultra Librarian 3D Model Ultra Librarian 5103310-2 CAD Model

Description

The 848901-5103310-2 is a male pin header connector in the AMP-Latch series.

  • Series: AMP-Latch
  • Connector Type: Header
  • Positions: 14
  • Rows: 2
  • Features: Keying Slot
  • Contact Finish: Gold or Gold-Palladium
  • Mounting Style: Through-Hole, Right-Angle
  • Contact Material: Brass
  • Pitch: 0.100" (2.54mm)
  • Temperature Range: -65°C to 105°C
  • Packaging: Tube
  • Standard Package Size: 100 pieces
  • Product Status: Active
  • Manufacturer: TE Connectivity
  • Fastening Type: Push-Pull
