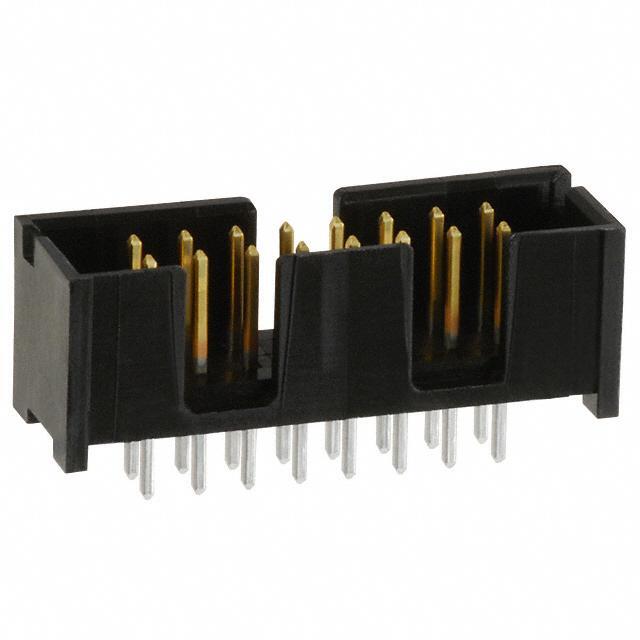

The 763883-5103308-3 AMP-Latch header connector is a male pin contact type connector with 16 positions loaded in two rows. The manufacturer of this product is TE Connectivity AMP Connectors.

• Contact Type: Male pin
• Positions Loaded: 16
• Rows: 2
• Pitch-Mating: 0.100" (2.54mm)
• Shrouding: 4 walls
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Length-Mating: 0.240" (6.10mm)
• Contact Length-Post: 0.120" (3.05mm)
• Insulation Height: 0.388" (9.86mm)
• Fastening Type: Push-pull
• Keying Slot: Yes
• Applications: Board-to-cable/wire
• Material Flammability: UL94 V-0
• Package: Tube
• Operating Temperature Range: -65°C to 105°C
• Alternatives: 88880-070, 511.066.003.016.000, BHR16VSGA
• ECCN: EAR99
• Halogen-Free: No
• HTSUS Code: 8536.90.4000
