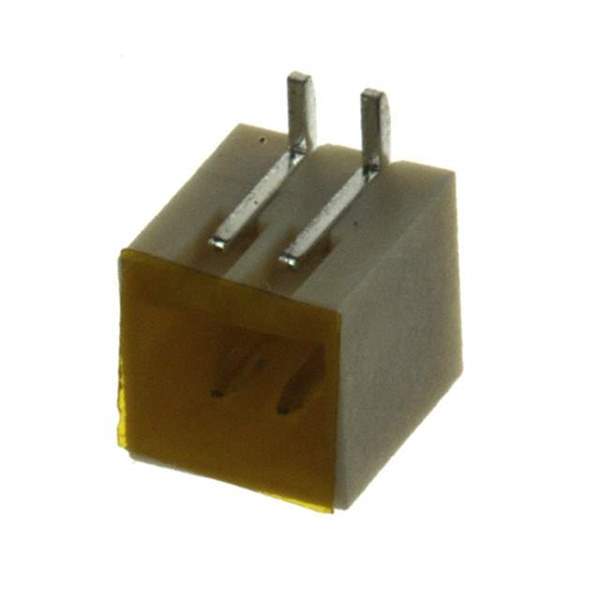

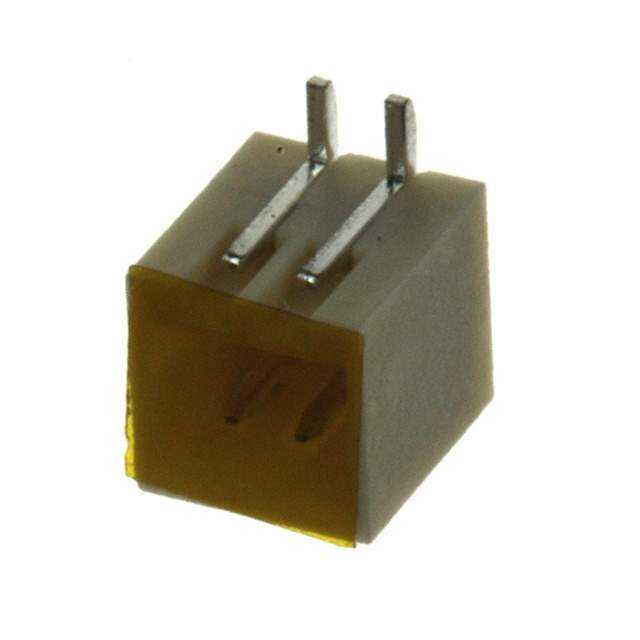

5-1775443-2 Real Image
Same model may have multiple batches, images only for reference.

5-1775443-2

Part No 5-1775443-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 1.5MM 2POS VERT SMD
Datasheet
5-1775443-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Contact Length - Mating 0.106" (2.70mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Pick and Place
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250VAC
Applications Automotive, General Purpose, Industrial, Medical
Win Source Part Number 763923-5-1775443-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5-1775443-2 CAD Model

Description

The 763923-5-1775443-2 is a high-performance interconnect (HPI) header connector manufactured by TE Connectivity AMP Connectors.

  • Contact Type: Male Pin
  • Applications: Automotive, General Purpose, Industrial, and Medical
  • Supply and Demand Status: Balanced
