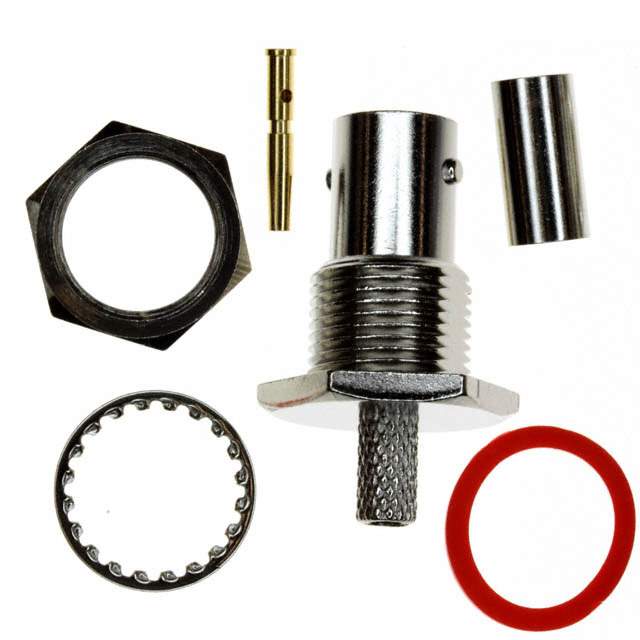

5-1634516-1 Real Image
Same model may have multiple batches, images only for reference.

5-1634516-1

Part No 5-1634516-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK STR 50 OHM CRIMP / BNC Connector Jack, Female Socket 50Ohm Panel Mount Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Series ZDC, Greenpar
Package Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group RG-58C, 141A, Belden 9907
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
Body Material Zinc Alloy
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 1634516
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names -5-1634516-1-SI,2266-5-1634516-1,A97573
Standard Package 100
Win Source Part Number 1038756-5-1634516-1
Ultra Librarian 3D Model Ultra Librarian 5-1634516-1 CAD Model

Description

The 1038756-5-1634516-1 is a BNC coaxial connector from TE Connectivity AMP Connectors.

  • Series: ZDC, Greenpar
  • Voltage Rating: 500V
  • Impedance: 50Ohm
  • Connector Type: jack, female socket
  • Fastening Type: bayonet lock
  • Mounting Type: panel mount
  • Body Material: zinc alloy
  • Body Finish: nickel
  • Cable Groups: RG-58C, 141A, Belden 9907
  • Operating Temperature Range: -55°C to 85°C
  • EOL Date: not available
  • REACH: REACH affected
  • Alternative Parts: 131-3302-006, 1-1337548-0, 1-1337433-0, 1-1337441-0, B6421E1-ND3G-5-50, 112202, 031-10-RFXG1
