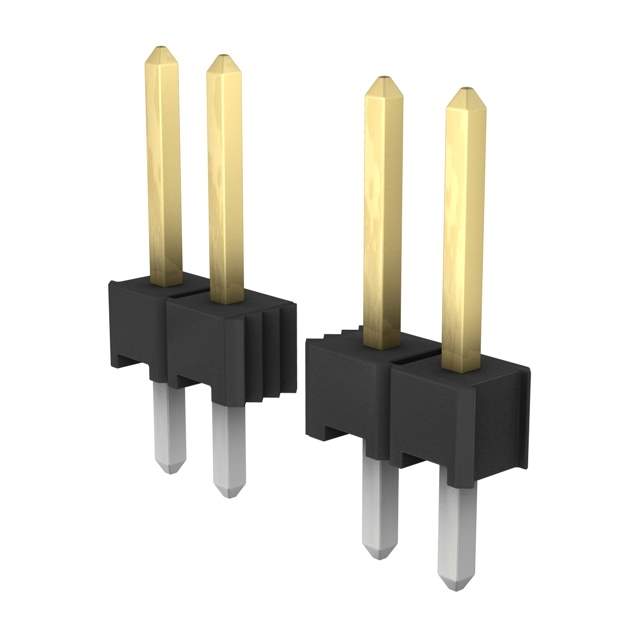

5-146285-8 Real Image
Same model may have multiple batches, images only for reference.

5-146285-8

Part No 5-146285-8
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.090" (2.29mm)
Overall Contact Length 0.410" (10.41mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146285
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 8,000
Win Source Part Number 1038752-5-146285-8
Ultra Librarian 3D Model Ultra Librarian 5-146285-8 CAD Model

Description

The AMPMODU Mod II series male pin header connector is a reliable and high-quality connector that is designed for use in various applications.

  • Series: AMPMODU Mod II
  • Connector Type: header, breakaway
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Post Contact Finish: tin
  • Material: copper alloy
  • Insulation: liquid crystal polymer (LCP)
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Positions: 8
  • Packaging: bulk
  • Standard Package: 8,000
