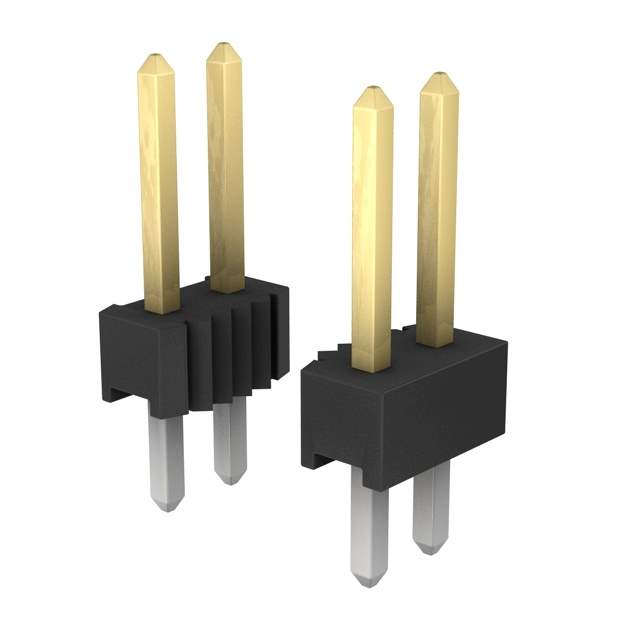

5-146253-3

Name: 5-146253-3
Brand: TE Connectivity
SKU: 1334565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-146253-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.533" (13.55mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	146253
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	2266-5-146253-3
Standard Package	10,400
Win Source Part Number	1334565-5-146253-3
Ultra Librarian 3D Model	Ultra Librarian 5-146253-3 CAD Model

Description

The 1334565-5-146253-3 is a male pin header connector manufactured by TE Connectivity AMP Connectors.

Category: Rectangular Connectors
Packaging: Bulk
Positions: 6
Connector Type: Header, Breakaway
Contact Type: Male Pin
Positions Loaded: All
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP)
Application Style: Board to Board or Cable
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Contact Finish-Mating Thickness: 30.0µin (0.76µm)
Contact Finish-Post: Tin
Contact Finish-Post Thickness: 100.0µin (2.54µm)
RoHS3 Compliant: Yes
ECCN: EAR99
MSL Level: 1 (Unlimited)
