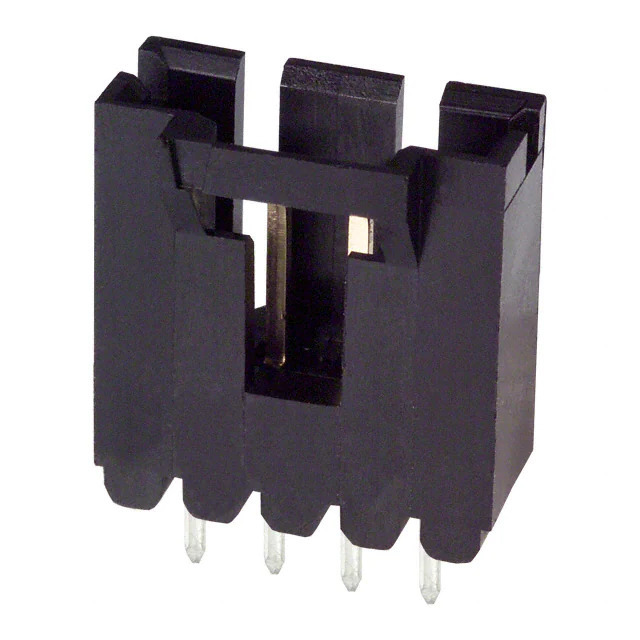

Same model may have multiple batches, images only for reference.

5-104363-3

Name: 5-104363-3
Brand: TE Connectivity
SKU: 1362598
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-104363-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU MTE
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.550" (13.97mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	104363
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362598-5-104363-3
Ultra Librarian 3D Model	Ultra Librarian 5-104363-3 CAD Model

Alternative Products

Description

The 1362598-5-104363-3 is a male pin header connector from TE Connectivity AMP Connectors.

Series: AMPMODU MTE
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Keying: Keying Slot
Row: 4-Row
Design: Shrouded
Features: 4 Wall Latch Holders
Contact Material: Brass
Contact Finish: Gold
Contact Finish Thickness: 15.0μin (0.38μm)
Current Rating: 3A
Application: Automotive, General Purpose, Medical, Telecommunications
