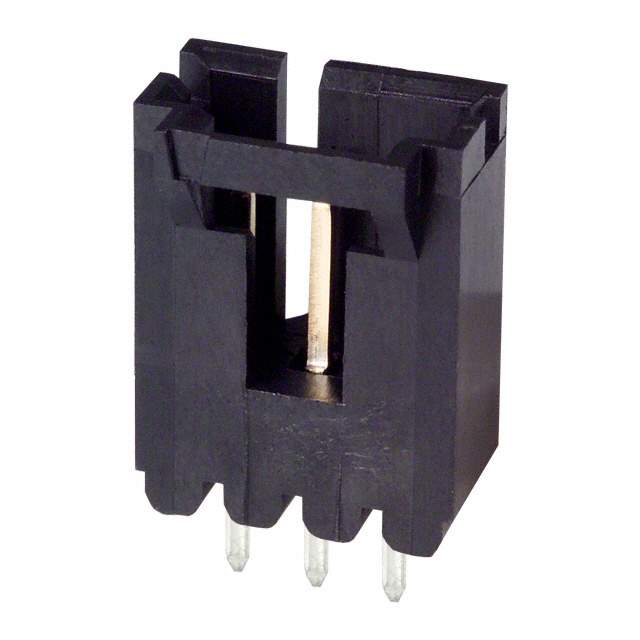

Same model may have multiple batches, images only for reference.

5-104363-2

Name: 5-104363-2
Brand: TE Connectivity
SKU: 1339358
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-104363-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU MTE
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.550" (13.97mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	104363
Standard Package	52
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339358-5-104363-2
Ultra Librarian 3D Model	Ultra Librarian 5-104363-2 CAD Model

Alternative Products

Description

The AMPMODU MTE series male pin header connector is a rectangular connector with a keying slot, designed for use in automotive, general purpose, medical, and telecommunications applications.

Position Loaded: 3
Number of Rows: 1
Termination: Solder
Fastening Type: Latch Holder
Shrouded: 4 Walls
Contact Material: Brass
Mating Contact Finish: Gold
Post Contact Finish: Tin
Contact Shape: Square
Overall Contact Length: 0.550 inches
Post Contact Length: 0.130 inches
Insulation Material: Thermoplastic
Insulation Height: 0.535 inches
Current Rating: 3 amps
Operating Temperature: -65°C to 105°C
