Same model may have multiple batches, images only for reference.

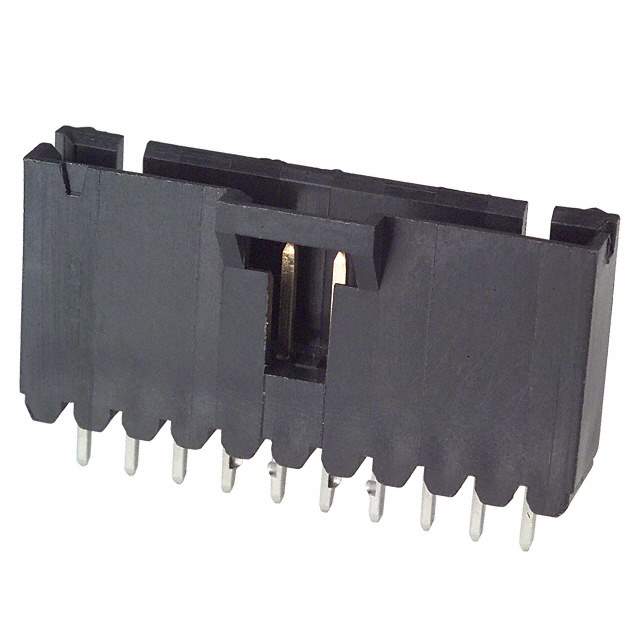

5-103908-9 Real Image
Same model may have multiple batches, images only for reference.

5-103908-9

Part No 5-103908-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103908
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5-103908-9,-5-103908-9-SI,51039089,-5-103908-9-CSI,A33907
Standard Package 19
Win Source Part Number 1334523-5-103908-9
Ultra Librarian 3D Model Ultra Librarian 5-103908-9 CAD Model

Description

TE Connectivity AMP Connectors 1334523-5-103908-9 is a 10-position male pin header connector designed for use in automotive, general purpose, medical, and telecommunications applications.

  • Positions: 10
  • Keying Slot: Yes
  • Termination: Press-Fit and Solder
  • Fastening: Latch Holder
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Brass
  • Contact Finish - Mating: Gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish - Post: Tin with a thickness of 100.0µin (2.54µm)
  • Contact Shape: Square
  • Overall Contact Length: 0.545" (13.84mm)
  • Insulation Height: 0.535" (13.60mm)
  • Operating Temperature: -65°C to 105°C
  • Current Rating: 3A
  • RoHS3 Compliant: Yes
  • Standard Package: 19
