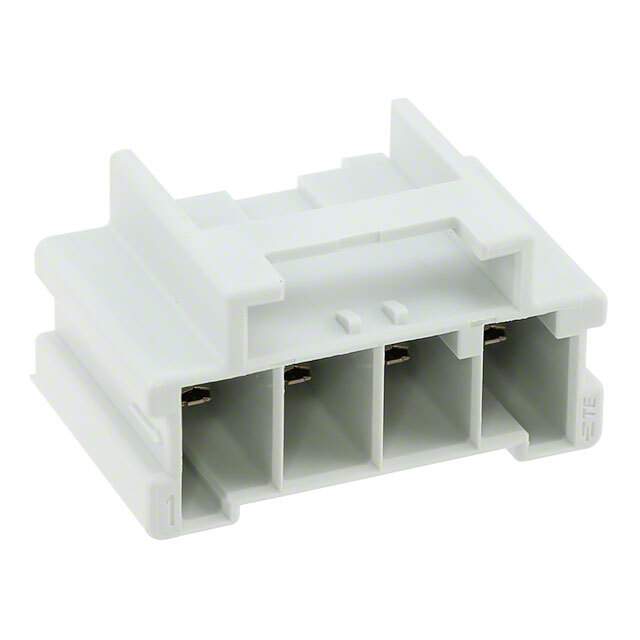

Same model may have multiple batches, images only for reference.

1-1969688-4

Name: 1-1969688-4
Brand: TE Connectivity
SKU: 1334437
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1969688-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 6MM / Connector Header Through Hole 4 position 0.236" (6.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.236" (6.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.131" (3.33mm)
Insulation Height	0.681" (17.30mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide
Temperature Range - Operating	-55°C ~ 150°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Applications	General Purpose
Base Product Number	1969688
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A120939
Standard Package	90
Win Source Part Number	1334437-1-1969688-4
Ultra Librarian 3D Model	Ultra Librarian 1-1969688-4 CAD Model

Description

The TE Connectivity AMP Connectors Rectangular Connector is a high-quality component that is suitable for use in a wide range of electronic applications.

Insulation Color: Gray
Shrouding: Shrouded-4 Wall
Win Source Part Number: 1334437-1-1969688-4
Mounting Type: Through Hole
Style: Board to Cable/Wire
Voltage Rating: 600VAC
Application: General Purpose
