Same model may have multiple batches, images only for reference.

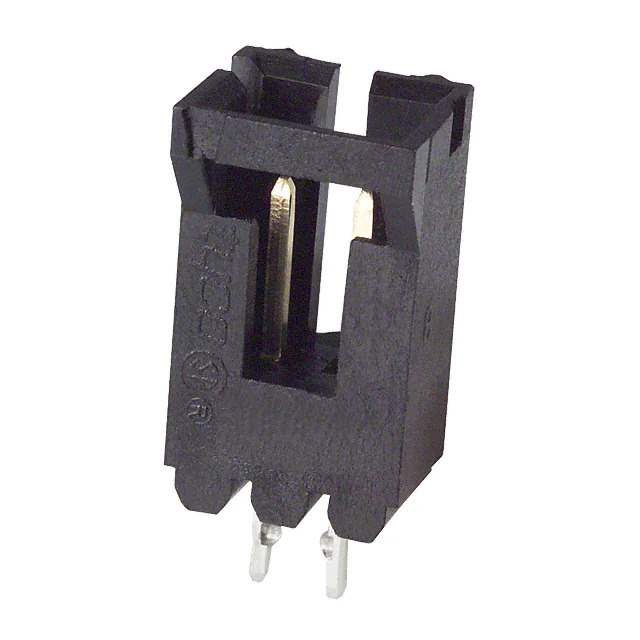

5-103908-1 Real Image
Same model may have multiple batches, images only for reference.

5-103908-1

Part No 5-103908-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103908
Standard Package 71 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856352-5-103908-1
Ultra Librarian 3D Model Ultra Librarian 5-103908-1 CAD Model

Description

The 856352-5-103908-1 is a male pin header connector from the AMPMODU MTE series.

  • Positions: 2
  • Feature: keying slot
  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: All
  • Rows: Single
  • Termination: press-fit and solder
  • Fastening: latch holder
  • Package: tube
  • Standard Package: 71 pieces
  • Contact Material: brass
  • Insulation Material: thermoplastic
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish (Mating): gold (30.0µin / 0.76µm)
  • Contact Finish (Post): tin (100.0µin / 2.54µm)
  • Insulation Color: black
  • Mounting: through hole
  • Shroud: 4 walls
  • Contact Length (Post): 0.130 inches (3.30mm)
  • Overall Contact Length: 0.545 inches (13.84mm)
  • Insulation Height: 0.535 inches (13.60mm)
  • Contact Shape: square
  • Operating Temperature: -65°C to 105°C
  • Contact Length (Mating): 0.230 inches (5.84mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3A
  • REACH: vendor undefined
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 103908
  • Product Status: active
