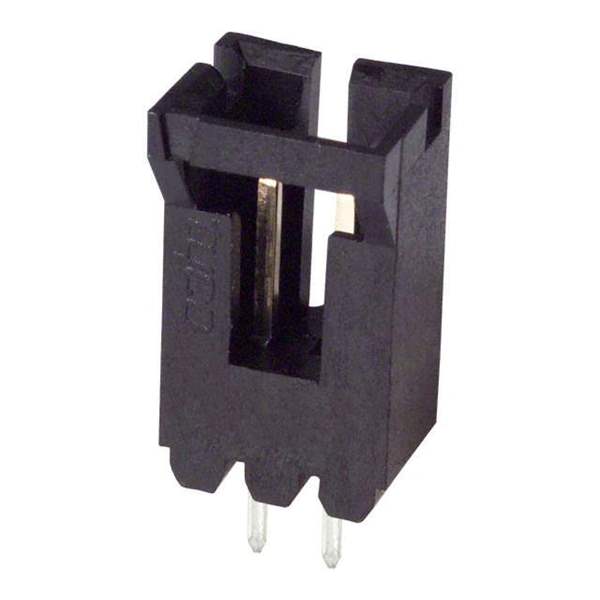

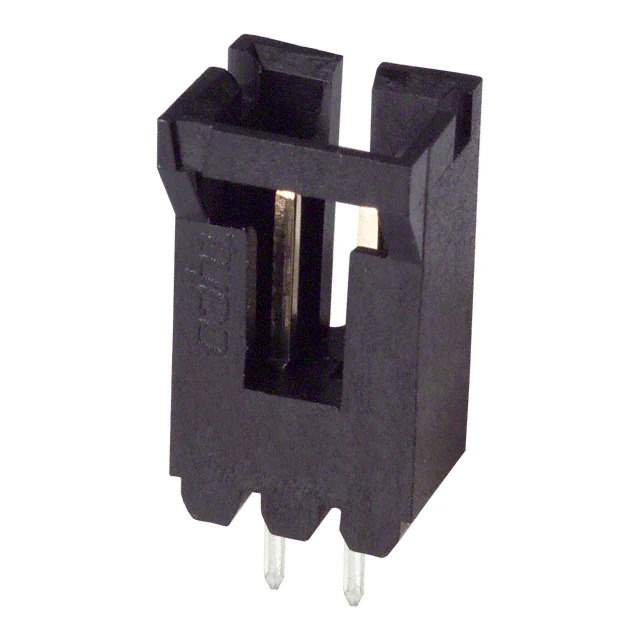

5-103735-1 Real Image
Same model may have multiple batches, images only for reference.

5-103735-1

Part No 5-103735-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103735
Standard Package 71 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856351-5-103735-1
Ultra Librarian 3D Model Ultra Librarian 5-103735-1 CAD Model

Description

The AMPMODU MTE series is a range of rectangular connectors designed for various applications including automotive, general purpose, medical, and telecommunications.

  • Contact Type: male pin
  • Positions Loaded: 2
  • Termination: solder
  • Fastening: latch holder
  • Contact Material: brass
  • Contact Finish: gold
  • Current Rating: 3A
  • Temperature Range: -65°C to 105°C
  • Contact Length: 0.545" (13.84mm)
  • Insulation Height: 0.535" (13.60mm)
  • Color: black
  • Mounting: through hole
  • Shroud: 4 walls
  • Standard Package: 71 pieces
