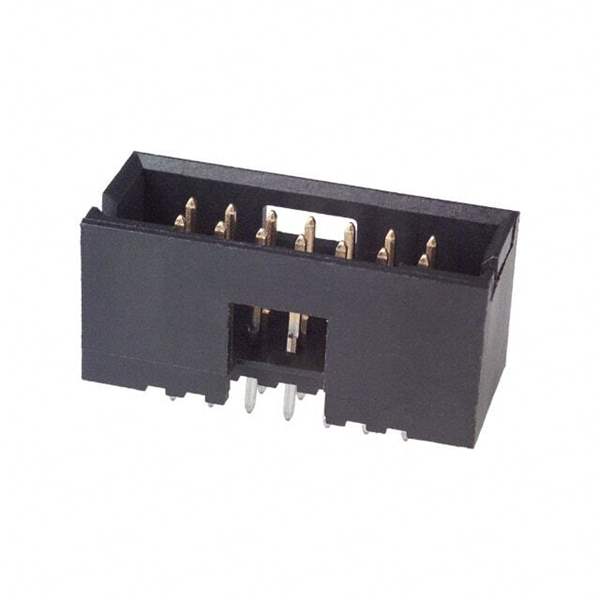

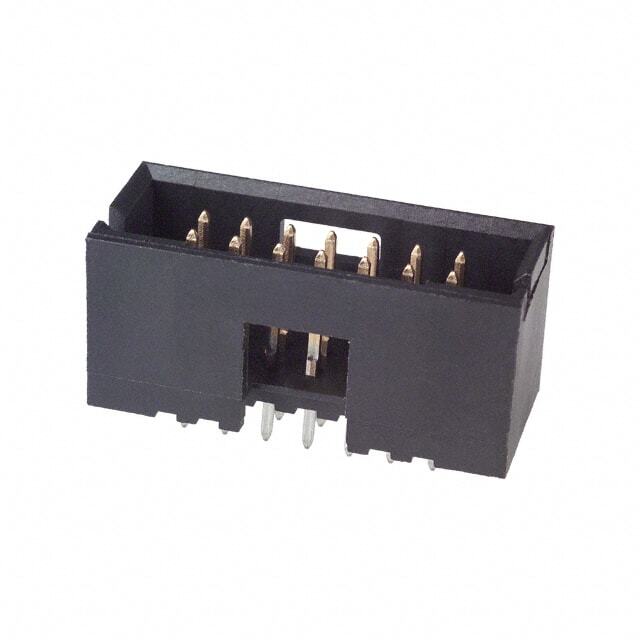

5-103169-5
Same model may have multiple batches, images only for reference.

5-103169-5

Part No 5-103169-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.440" (11.18mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 103169
Standard Package 192 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856349-5-103169-5
Ultra Librarian 3D Model Ultra Librarian 5-103169-5 CAD Model

Description

The 856349-5-103169-5 is a 14-position male pin header from TE Connectivity's AMPMODU Mod II series.

  • Positions: 14
  • Fastening Type: detent lock
  • Contact Type: male pin
  • Positions Loaded: all
  • Rows: two
  • Pitch: 0.100" (2.54mm)
  • Application: board-to-board or cable connections
  • Contact Finish: gold
  • Insulation Material: thermoplastic
  • Flammability Rating: UL94 V-0
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting: through-hole
  • Shroud: 4 walls
  • Operating Temperature: -65°C to 105°C
