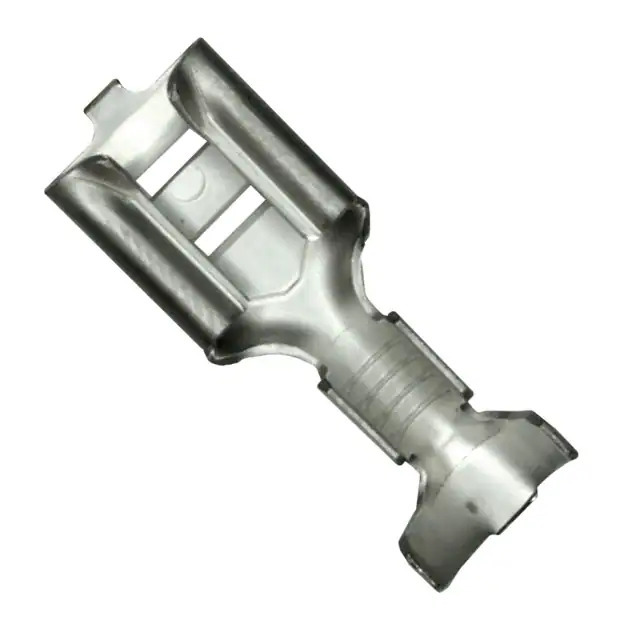

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.753" (19.13mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
Base Product Number 42660
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364812-42660-2
Ultra Librarian 3D Model Ultra Librarian 42660-2 CAD Model

Description

The Faston Quick Disconnect Connector from TE Connectivity AMP Connectors is a versatile and reliable component for your electronic projects.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge Sizes: 14-18 AWG
  • Contact Finish: Tin
  • Design: Non-Insulated
  • Termination: Crimp
  • Overall Length: 0.753" (19.13mm)
  • Terminal: Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.305" (7.75mm)
  • Insulation Diameter: 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
