42067-1 TE Connectivity
Same model may have multiple batches, images only for reference.

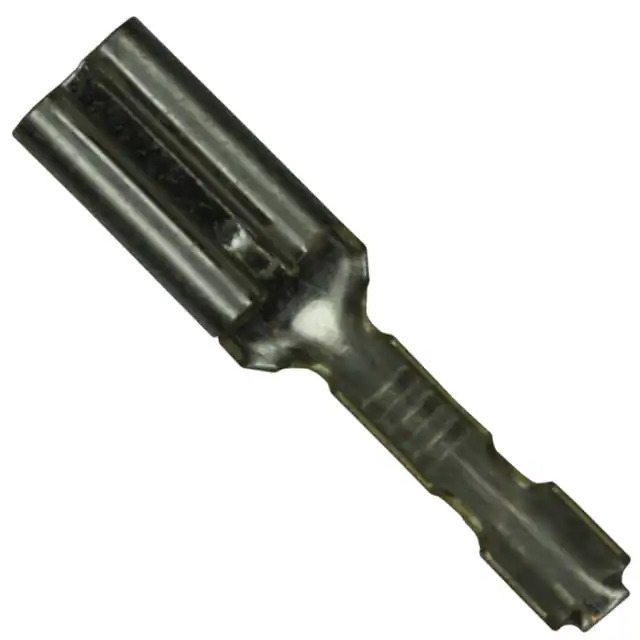

42067-1

Part No 42067-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 22-24AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 22-24 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.635" (16.13mm)
Termination Crimp
Wire Gauge 22-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Base Product Number 42067
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365002-42067-1
Ultra Librarian 3D Model Ultra Librarian 42067-1 CAD Model

Description

The 1365002-42067-1 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Series: Faston
  • Package: Tape & reel
  • Wire Gauge: 22-24 AWG
  • Termination Style: Crimp
  • Terminal Type: Standard
  • Status: Active
  • MSL Level: Unlimited
  • Base Product Number: 42067
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
