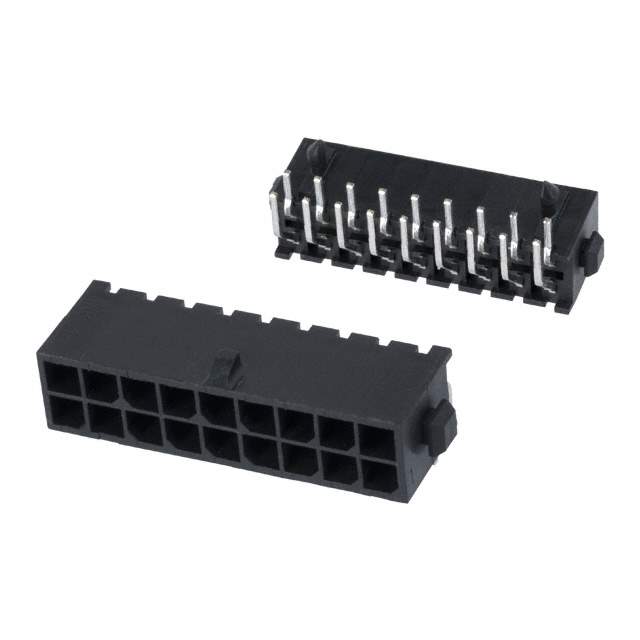

4-794618-8 Real Image
Same model may have multiple batches, images only for reference.

4-794618-8

Part No 4-794618-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 18POS 3MM / Connector Header Through Hole, Right Angle 18 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Micro MATE-N-LOK
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794618
Standard Package 117
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349286-4-794618-8
Ultra Librarian 3D Model Ultra Librarian 4-794618-8 CAD Model

Description

The TE Connectivity AMP Connectors 794618-8 is a male pin header connector that comes in a tray package.

  • Features: Board Lock
  • Application: General Purpose
  • Style: Shrouded - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • Pitch - Mating: 0.118" (3.00mm)
  • Row Spacing - Mating: 0.118" (3.00mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0μin (2.54μm)
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Black
  • Win Source Part Number: 1349286-4-794618-8
