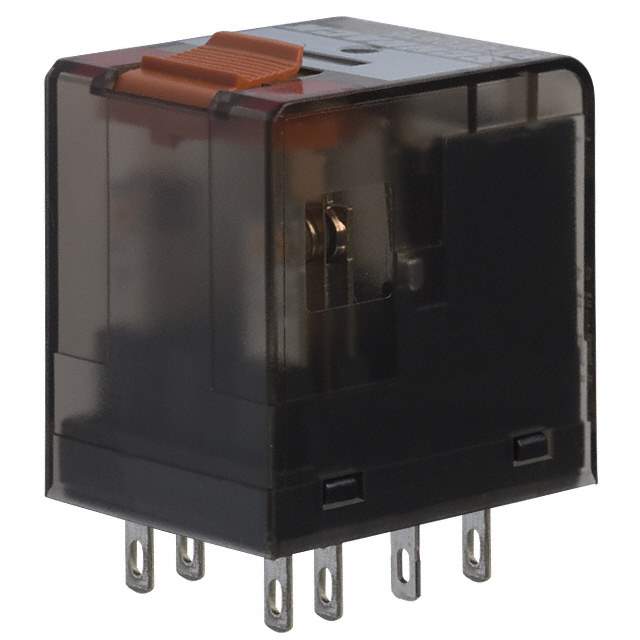

4-1419111-2 Real Image
Same model may have multiple batches, images only for reference.

4-1419111-2

Part No 4-1419111-2
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description 24 A SPST DPDT (2 Form C) 24 V Plug-In General Purpose Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 30.89 mA
Coil Power 750 mW
Coil Resistance 777 Ω
Coil Voltage (AC) 24 V
Coil Voltage (DC) 24 V
Contact Current Rating 12 A
Contact Material Silver
Depth 22.5 mm
Dropout Voltage 2.4 V
ELV Compliant
Height 29 mm
Lead Free Yes
Length 28 mm
Max Current Rating 24 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount Plug-In
Number of Pins 8
Operate Time 15 ms
Packaging Box
Power Consumption 750 µW
Radiation Hardening No
Ratings IP40
REACH SVHC No SVHC
RoHS Compliant
Switching Capacity 3 kW
Switching Current 12 A
Termination Quick Connect
Throw Configuration DPDT
Voltage Rating (AC) 400 V
Weight 30 g
Width 22.5 mm
Win Source Part Number 1038580-4-1419111-2
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1419111-2 CAD Model

Description

The TE Connectivity 1038580-4-1419111-2 is a Signal Relay with a DPDT throw configuration. It has a coil voltage (DC) and (AC) of 24 V and a dropout voltage of 2.4 V.

  • Throw Configuration: DPDT
  • Coil Voltage (DC): 24 V
  • Coil Voltage (AC): 24 V
  • Dropout Voltage: 2.4 V
  • Contact Current Rating: 12 A
  • Maximum Current Rating: 24 A
  • Packaging: Box
  • Size: 22.5 mm x 28 mm x 29 mm
  • Mounting Type: Plug-In
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Supply Status: Shortage
