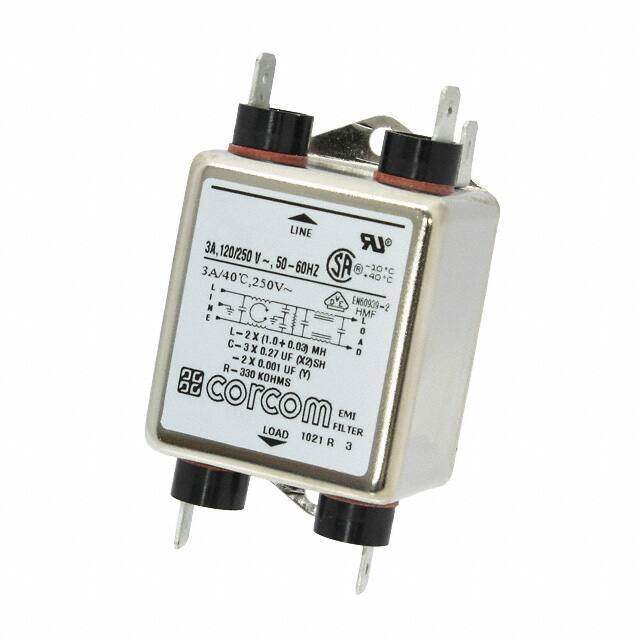

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr TE Connectivity
Series MV
Package Bulk
Product Status Active
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 250V
Current 3 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Base Product Number 3M
Standard Package 9 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 545772-3MV1
Ultra Librarian 3D Model Ultra Librarian 3MV1 CAD Model

Description

The MV series power line filter module by TE Connectivity is a reliable and efficient solution for filtering power in electronic systems.

  • Termination Style: Quick Connect
  • Package: Bulk
  • Application: General Purpose
  • Configuration: Two-Stage
  • Phase: Single-Phase
  • Current Rating: 3A
  • Maximum AC Voltage: 250V
  • Frequency: 50/60Hz
  • Mounting: Chassis Mount
  • Operating Temperature: -10°C to 40°C
  • Approvals: CSA, UR, VDE
