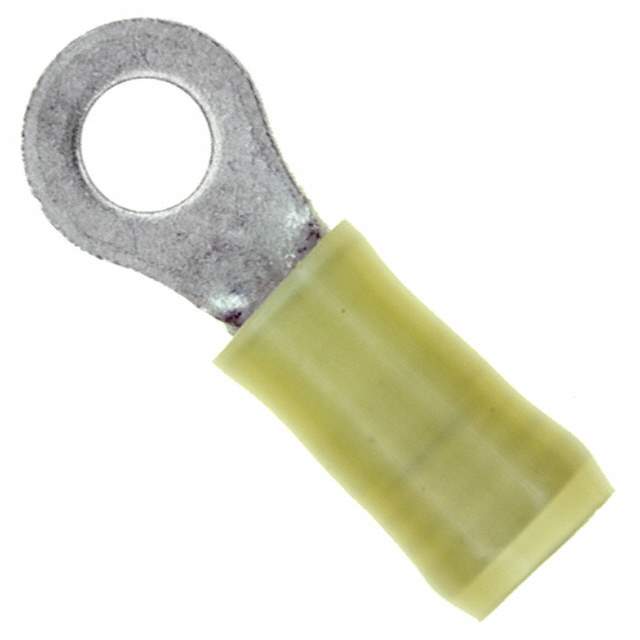

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 1.083" (27.51mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.230" (2.67mm ~ 5.84mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 3616
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 36161-ND,-36161-SI,-E87226-000-SI-ND,2266-36161,A27284,-E87226-000-SI
Standard Package 500
Win Source Part Number 1333443-36161
Ultra Librarian 3D Model Ultra Librarian 36161 CAD Model

Description

The TE Connectivity AMP Connectors 1333443-36161 is a ring connector that has a serrated termination.

  • Termination: Crimp, Serrated
  • Contact Finish: Tin
  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation: Insulated
  • Insulation Diameter: 0.105" ~ 0.230" (2.67mm ~ 5.84mm)
  • Stud/Tab Size: 10 Stud
  • Thickness: 0.039" (0.99mm)
  • Packaging: Bulk
  • Standard Package: 500
  • Mounting Type: Free Hanging (In-Line)
  • Terminal Type: Circular
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.90.4000
