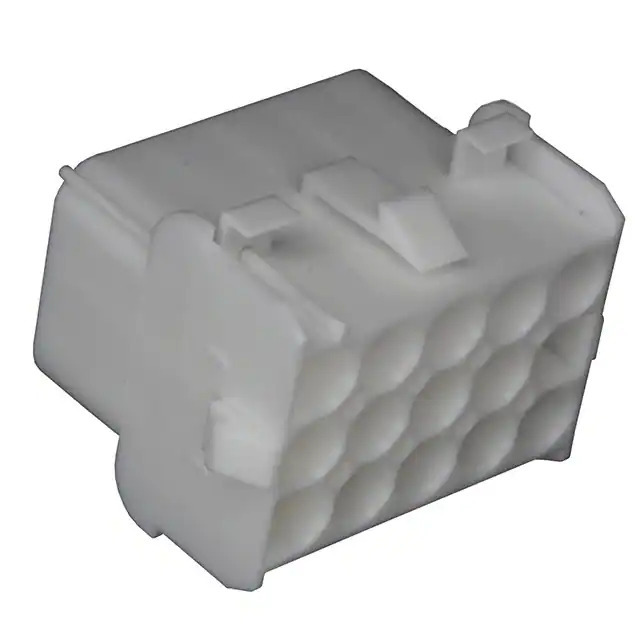

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 15
Number of Rows 3
Row Spacing 0.250" (6.35mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 350784
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365711-350784-1
Ultra Librarian 3D Model Ultra Librarian 350784-1 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK series is a panel mount, snap-in receptacle connector. TE Connectivity AMP Connectors manufactures it.

  • Current Rating: - Amps
  • Mounting Type: Panel Mount
  • Connector Type: Receptacle, Male or Female Contacts
  • Number of Positions: 15
  • Number of Rows: 3
  • Row Spacing: 0.250" (6.35mm)
  • Fastening Type: Locking Ramp
  • Contacts: -
  • Color: Natural
  • Series: Universal MATE-N-LOK
