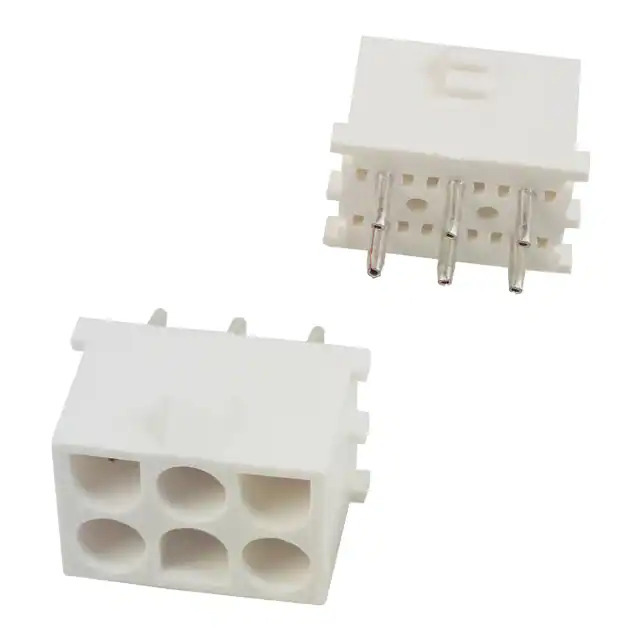

350711-1 TE Connectivity
Same model may have multiple batches, images only for reference.

350711-1

Part No 350711-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 6.35MM / Connector Header Through Hole 6 position 0.250" (6.35mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 6
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.155" (3.94mm)
Overall Contact Length -
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 350711
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362575-350711-1
Ultra Librarian 3D Model Ultra Librarian 350711-1 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK series header is a versatile component for various electronic applications.

  • Mounting Type: Through Hole
  • Pitch: 0.250" (6.35mm)
  • Number of Positions: 6
  • Number of Rows: 3
  • Fastening Type: Locking Ramp
  • Design: Shrouded
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA)
  • Flammability Rating: UL94 V-0
