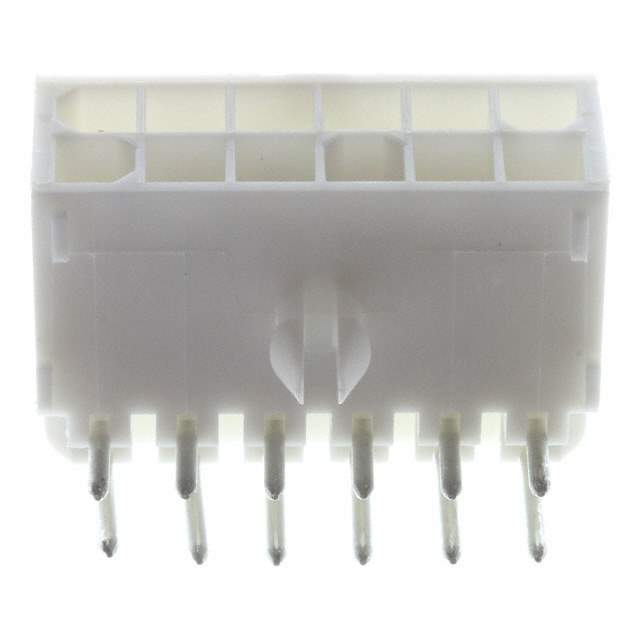

1-770972-0

Name: 1-770972-0
Brand: TE Connectivity
SKU: 1334475
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-770972-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 12POS 4.14MM / Connector Header Through Hole, Right Angle 12 position 0.163" (4.14mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.163" (4.14mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.163" (4.14mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.145" (3.68mm)
Insulation Height	0.386" (9.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	General Purpose
Base Product Number	770972
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	17709720,-1-770972-0-SI,A32480,2266-1-770972-0
Standard Package	200
Win Source Part Number	1334475-1-770972-0
Ultra Librarian 3D Model	Ultra Librarian 1-770972-0 CAD Model

Description

This 12-position, 2-row male pin header from TE Connectivity AMP Connectors is designed for use in a variety of general-purpose applications.

Features: Board lock and locking ramp
Contact Material: Brass
Voltage Rating: 600VAC
Shrouding: 4 Walls
Pitch-Mating: 0.163 inches
Contact Finish-Mating: Tin (150.0µin/3.81µm)
Contact Finish-Post: Tin (150.0µin/3.81µm)
Insulation Material: Polyamide (PA) and nylon
Operating Temperature Range: -20°C to 85°C
