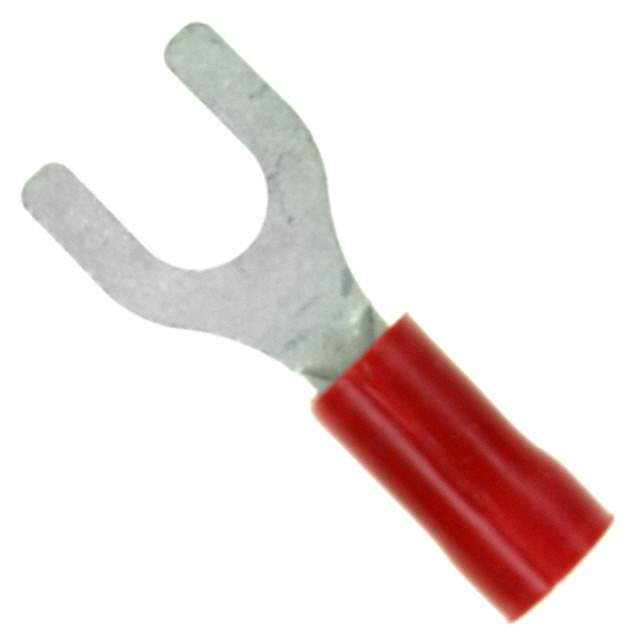

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Stud/Tab Size 10 Stud
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 0.920" (23.37mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Length - Ring Center to Termination 0.312" (7.92mm)
Length - Termination 0.416" (10.57mm)
Tongue Inside Opening 0.197" (5.00mm)
Base Product Number 3415
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -34156-LSI,2266-34156,A0976
Standard Package 1,000
Win Source Part Number 1333450-34156
Ultra Librarian 3D Model Ultra Librarian 34156 CAD Model

Description

TE Connectivity AMP Connectors Spade Connector is a high-quality connector that is designed to provide reliable and secure connections for your electrical projects.

  • Material: Copper
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Termination: Crimp, Serrated
  • Wire Gauge: 16-22 AWG
  • Color: Red
  • Width: 0.375 inches
  • Length: 0.920 inches
  • Insulation: Insulated
  • Insulation Diameter: 0.105 inches to 0.140 inches
  • Stud Size: 10 Stud
  • Tongue Inside Opening: 0.197 inches
  • Mounting: Free Hanging (In-Line)
  • Length of Ring Center to Termination: 0.312 inches
  • Termination Length: 0.416 inches
  • ROHS3 Compliant: Yes
