Same model may have multiple batches, images only for reference.

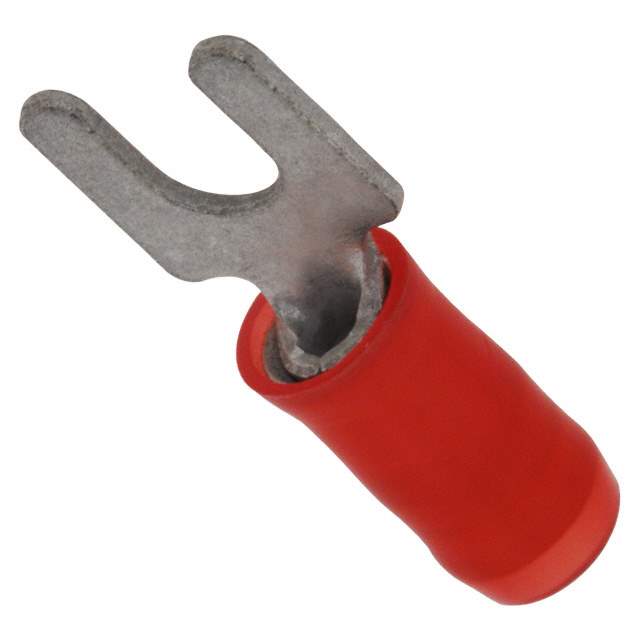

34080 Real Image
Same model may have multiple batches, images only for reference.

34080

Part No 34080
Manufacturer TE Connectivity
Catalog Terminals
Description CONN SPADE TERM 16-22AWG #6 RED / Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Stud/Tab Size 6 Stud
Width - Outer Edges 0.297" (7.54mm)
Length - Overall 0.753" (19.13mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.203" (5.16mm)
Length - Termination 0.404" (10.26mm)
Tongue Inside Opening 0.145" (3.68mm)
Base Product Number 3408
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -34080-SI,-500-095-0148-SI,-500-095-0148-SI-ND,A27416,34080-ND,2266-34080
Standard Package 1,000
Win Source Part Number 1333764-34080
Ultra Librarian 3D Model Ultra Librarian 34080 CAD Model

Description

TE Connectivity AMP Connectors Spade Connector is a high-quality connector designed for use in various electronic applications.

  • Termination: Serrated, Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-22 AWG
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
  • Color: Red
  • Packaging: Bulk
  • Length: 0.753 inches
  • Width: 0.297 inches
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Insulation: Insulated
  • Insulation Diameter: 0.080 inches to 0.125 inches
  • Stud/Tab Size: 6 Stud
  • Standard Package: 1000
